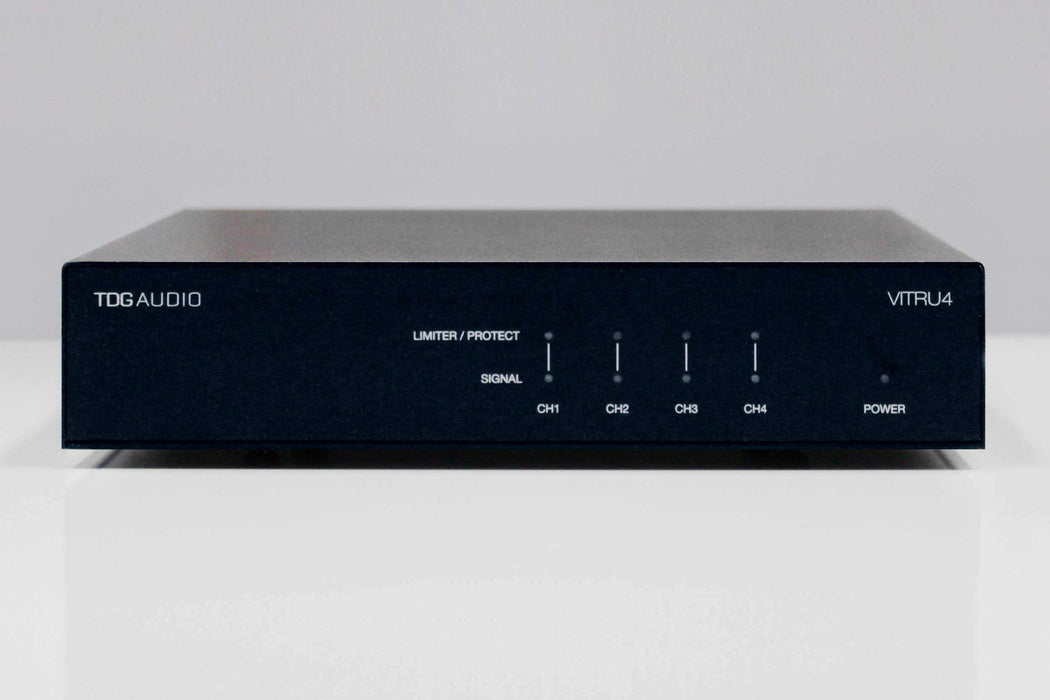

TDG Audio VITRU-4 4 Channel Compact Matrix Power Amplifier 4/8ohm/70v 1U/Half Rack
by TDG Audio
Original price
€1,000.00
-
Original price
€1,000.00
Original price
€1,000.00
€1,000.00
-
€1,000.00
Current price
€1,000.00
TDG Audio 4 Channel Compact Matrix Power Amplifier 4/8ohm/70v 1U/Half Rack.
Key Features
- Versatility: Suitable for 70/100V applications
- Inputs: 4 balanced inputs, with RCA adapters included for up to two stereo RCA inputs
- Standby Options: Default standby automatic mode, and 12V trigger for manual on/off control
- Control Options: Check TDG resource center for drivers that allow control by other systems
- Network Connectivity: Connects to the network via LAN for remote configuration
- Configuration Interface: Fine-tuning of loudspeakers (max. power limit, DSP filter, volume) and input- to-output channel assignment via a configuration interface
- Rack Mountable: Adapters included for installation in a 19" rack, with the option to install one or two amplifiers per 1U of rack space
- Active Cooling: Designed for quiet operation as it is actively cooled, eliminating disturbing noise
- Digital Overload Protection: Ensures operational safety by preventing overload issues
- Preset Selection: Allows you to select presets for loudspeakers to optimize sound in different rooms
- Compact Dimensions: Compact design for space-efficient installation
- Certifications: CE, EMC, LVD, ERP, UKCA
- LIMITED 3-YEAR WARRANTY
Specifications
| Model | VITRU-4 |
| Mechanical Specifications |
|
| Acoustic Specifications | Power Output: 120 watts per channel into 4 ohms, 8 ohms or 70/100v DSP Section: – 0 dB = full power, e.g. ~ 120 watts – 3 dB = half power, e.g. ~ 60 watts – 6 dB = quarter power, e.g. ~ 30 watts – 9 dB = eighth power, e.g. ~ 15 watts Output Configuration: The following settings are available: 4x 120 watts into 4 ohms 4x 120 watts into 8 ohms 2x 240 watts into 8 ohms* (4 ohms at your own risk) 2x 240 watts at 70 volts 2x 240 watts at 100 volts |
