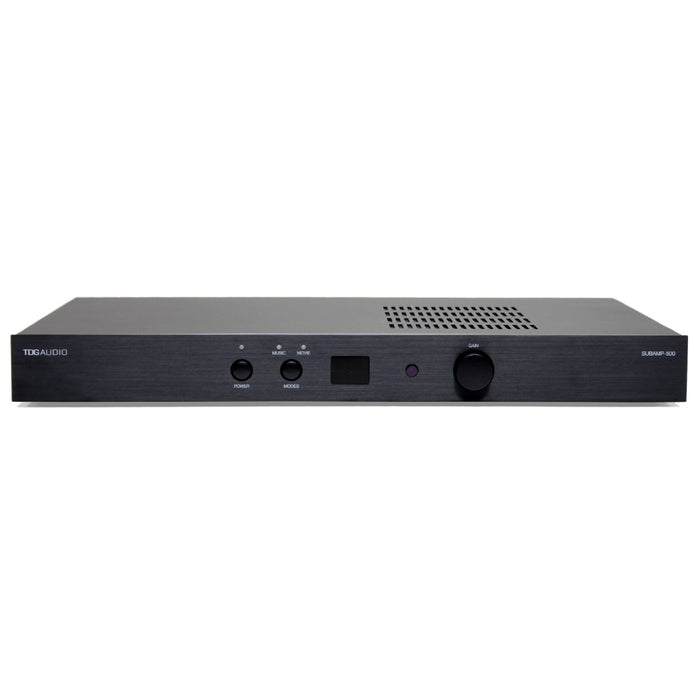

TDG Audio SUBAMP-500 500W Mono High Power Single or Dual Subwoofer Amplifier 1U

TDG Audio SUBAMP-500 500W Mono High Power Single or Dual Subwoofer Amplifier 1U

by TDG Audio
€1,225.00 - €1,225.00
€1,225.00
€1,225.00 - €1,225.00
€1,225.00

TDG Audio 500W Mono High Power Single or Dual Subwoofer Amplifier 1U.

Key Features

  • High Power Dual Subwoofer Amplifier
  • Low Pass Filter Crossover Adjustment
  • EQ Modes: Music (Flat), Movie (+8dB @40Hz)
  • ON/Auto/12v Trigger
  • Rack Mountable (1U Space)
  • Remote Control Included
  • 110V/230V
  • Certifications: CE, EMC, ERP, LVD, RoHs
  • LIMITED 3-YEAR WARRANTY

Specifications

Model SUBAMP-500
Mechanical Specifications
  • Weight: 19.7 lbs.
  • Dimensions: W 17" (432mm) x H 1.75" (45mm) x D 13.25" (337mm)
  • Input Connection: RCA
  • Output Connection: Binding Posts
Acoustic Specifications
  • Power Output: 312W RMS at 8ohms, 500W RMS at 4ohms
  • Frequency Response: 18Hz-160Hz
  • Low Pass Variable Filter: 40Hz-160Hz
  • Impedance: 4ohm or greater
  • Phase: 0 and 180
  • Distortion: 0.04% THD+N 1W/2W 100Hz
  • Auto On Sensitivity: 3Mv
