GM-ME600X6 | Marine Amplifier - Class-D 6Ch
Marine Class-FD 6-Channel Stereo Amplifier.
A New Wave.

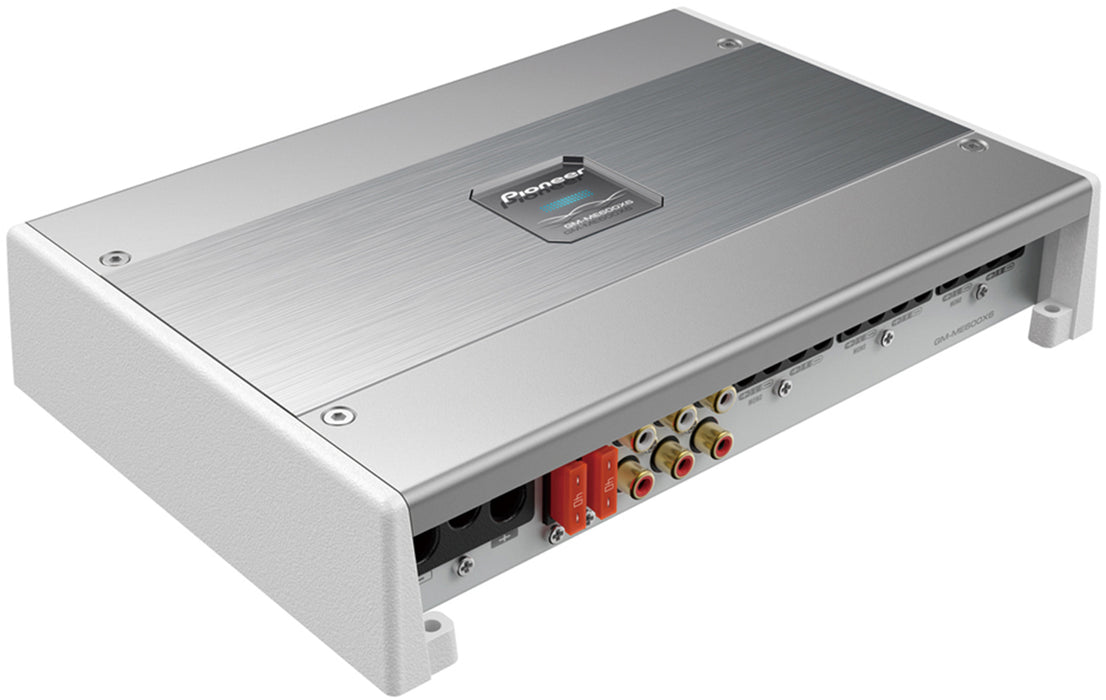

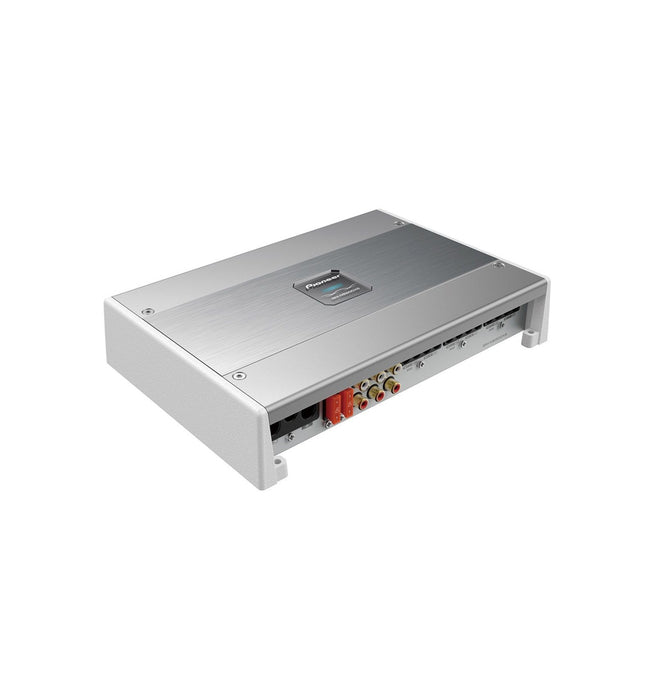

Pioneer's GM-ME600X6 is a Marine grade Class-D digital amplifier specifically designed for the marine environment, including features such as special painting, protective covers for the side panels and RCA terminal covers.
To prevent circuit shutdown, Pioneer's GM-ME600X6 digital amplifier circuit includes a "Protection Control System", which senses its internal temperature and automatically moderates input level accordingly. This design enhances the flexibility to connect multiple marine speakers and subwoofer to a system.
For extra flexibility, easy installation is guaranteed thank to "Automatic Signal Sensing and Turn-On", which automatically detects an input signal and turns the amplifier on and off when connected via the speaker line input.
Variable High Pass Filter (HPF) and Low Pass Filter (LPF) means you can adjust the audio frequency more according to the speaker, subwoofer characteristics and personal listening preferences.
The GM-ME600X6 has a hairline and matte treated aluminium top plate, giving it a nice look and feel.
Specifications
Full specifications
Main Features
| Speaker line input sensor | Turn-on sensor |
| Variable LPF | |
| D-class | |
| Channel(s) | 6/5/3 |
| Speaker Terminals | Block-type |
| Continuous Power Output | Normal Mode: 6 x 75W RMS (4Ω), 6 x 100W RMS (2Ω) - Mono Mode: 3 x 150W RMS (4Ω) High Power Mode: 6 x 100W RMS (4Ω), 6 x 100W RMS (2Ω) - Mono Mode: 3 x 200W RMS (4Ω) |
| Frequency response | 10Hz～240Hz (+0dB,-3dB) |
| Input level control | RCA (0.2V - 6.5V) SP (0.8V - 16V) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| Max. current consumption | 56A (High Power Mode) |
| Size | 260(W) X 50.6(H) X 180(D) mm |
| Unit weight | 2.6kg |
| Crossover Frequency | 50-500Hz, (-12dB/oct) Hz |
| Load impedance capability | 2 ～8Ω |
Audio
| Variable HPF | |
| RCA Terminals | |
| Low Pass Filter | |
| High Pass Filter |
Connections
| Multi-block Terminal |
