TS-WX010A
Ultra Compact Space Saving Active Subwoofer with built-in Class-D Amplifier featuring BASS SOUND CREATOR concept for impactful and quality bass. Easy to install at foot space thanks to its trapezium design. (160 W)
Small and powerful!

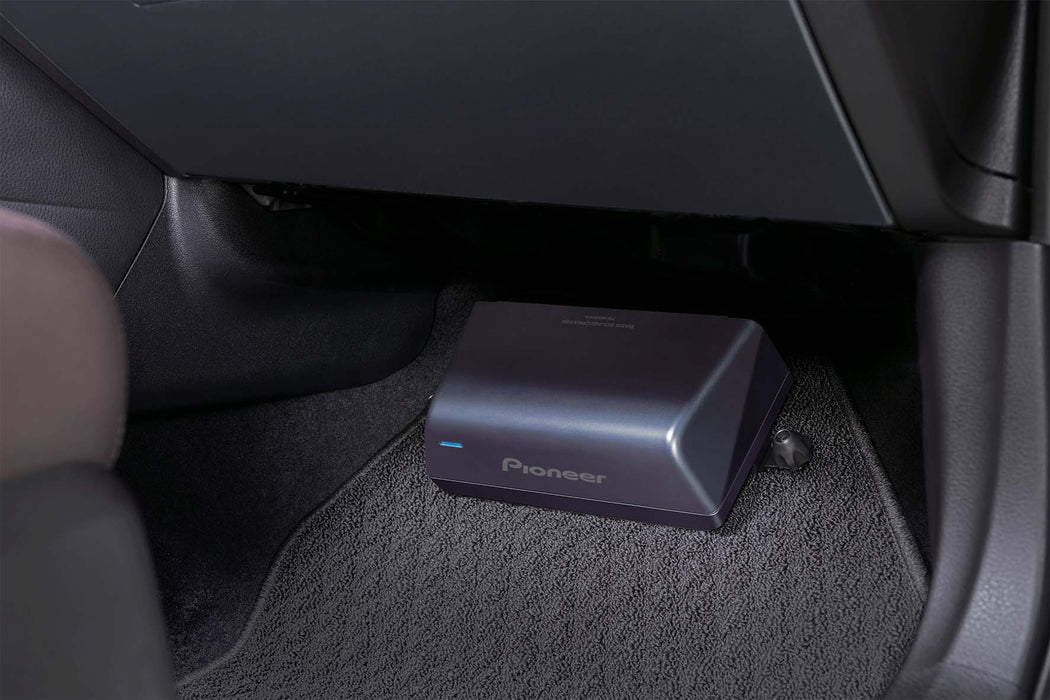

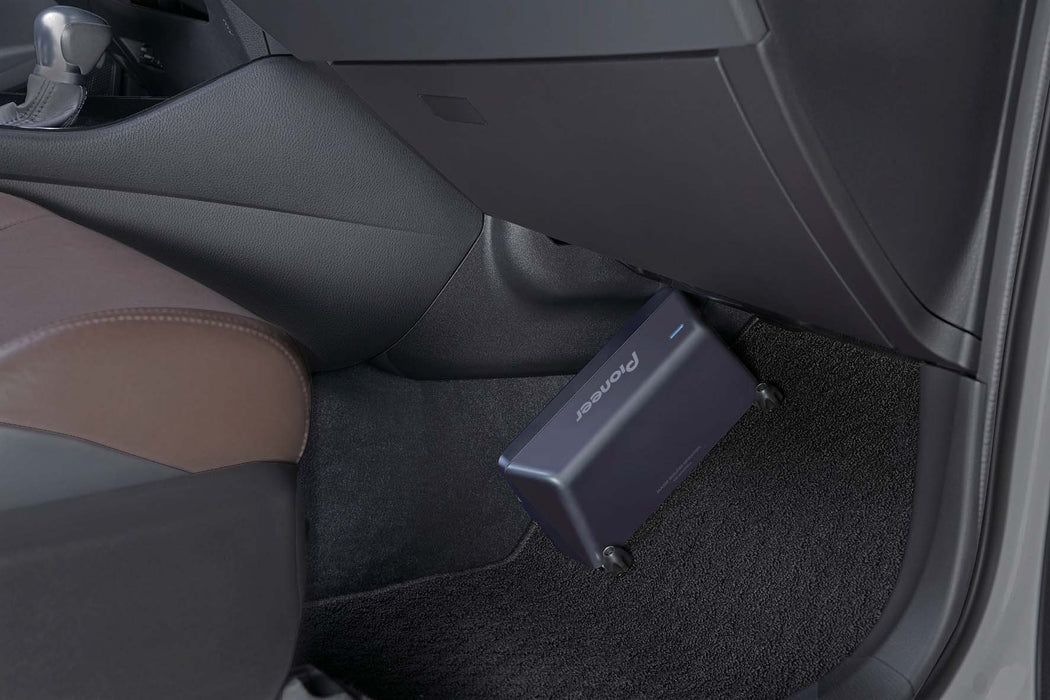

Pioneer's TS-WX101A is the smallest Active Subwoofer in its Active Subwoofer category. Designed to be installed in the passenger foot space area, TS-WX010A uses a Symbolic Trapezium design that can be easily installed vertically or horizontally.

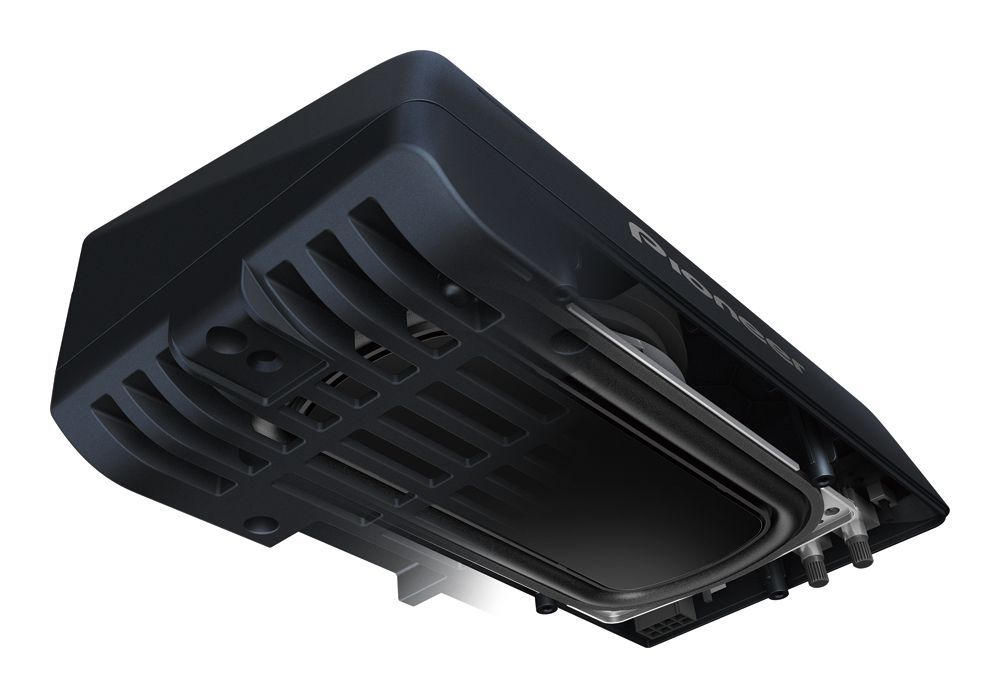

TS-WX010A gives a new sound experience, thanks to Pioneer's BASS SOUND CREATOR feature that offers impactful and high quality bass sound, a built-in CLASS-D amplifier and a down firing subwoofer for effective reproduction of low frequencies, so you can really feel the bass.
Furthermore, by installing in the passenger foot space area, it can improve the front sound imaging, by creating a natural sound connection with the front speakers, allowing you to experience a new sound experience.
Pioneer’s TS-WX010A delivers 160 W Maximum Power and 50 W RMS Power.
Specifications
Full specifications
Main Features
| EV Optimized | |
| CarSoundFit App | |
| BASS SOUND CREATOR | |
| Size | 17 cm x 8 cm |
| Type | Enclosed Sealed Active |
| Maximum power | 160 W |
| Continuous power output | 50 W |
| Frequency response | 20 Hz to 200 Hz |
| Sensitivity | 98 (Installed in foot space) dB |
| Function | Phase switch, Frequency control (50 Hz to 125 Hz), Gain control, Input Mode (High/Low) |
| Weight | 1.51 kg |
| Dimensions | 230 mm x 70 mm x 116 mm |
| Accessories | • Main Unit x 1 • Mounting Bracket x 2 • Under carpet installation bracket x 2 • Screws (φ5 mm x 14 mm) x 2 • Screws (M5 mm x 25 mm) x 2 • Power cord assembly (2.5 m) x 1 • Screw cover nut x 2 • Adhesive tape x 4 • Manual • Warranty document |
| Amplified Subwoofer |
