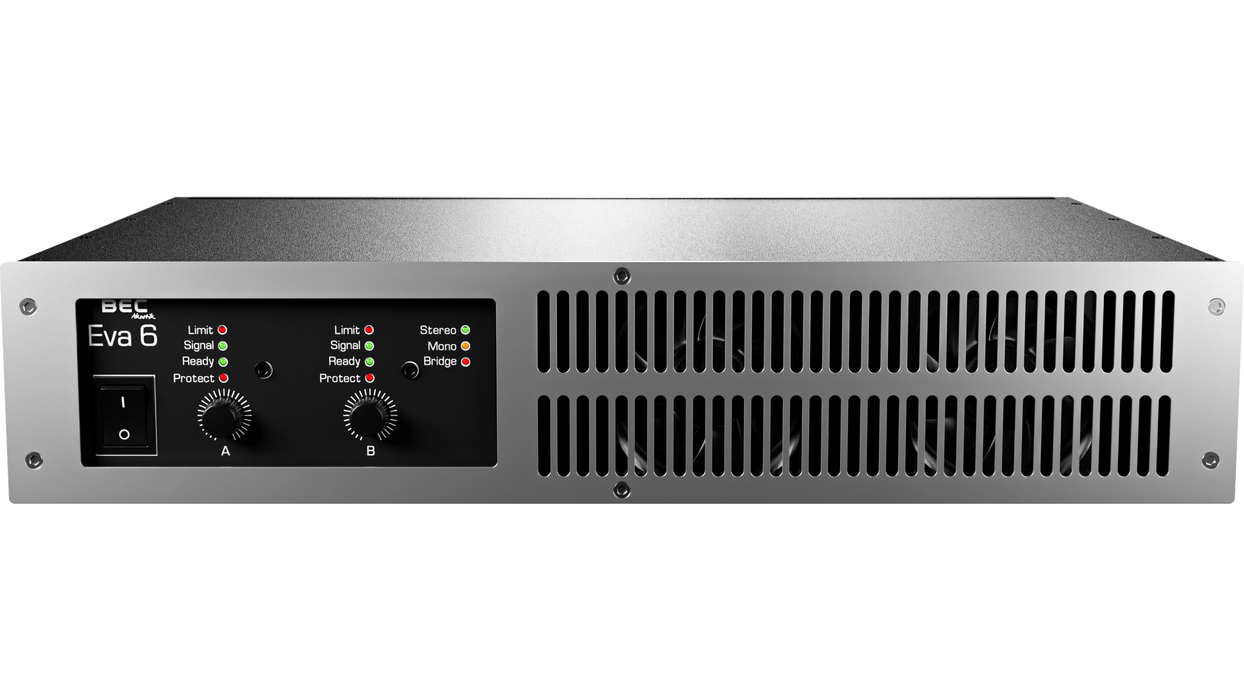

Eva6
by Bec Akustik
Sold out
Original price
€0.00
-
Original price
€0.00
Original price
€0.00
€0.00
-
€0.00
Current price
€0.00
Developed and manufactured in Germany
Our professional amplifiers for installation complement the existing speaker series. In keeping with our loudspeaker sound, we have opted for analog stereo power amplifiers using Class H technology.
The amplifiers have three different crossover frequency settings: Fullrange, Bass, or TOP 120 Hz with 24dB slope.
Characteristics
System : Analog Class-H Amplifier
Power (sin.) at 8 Ohm : 2x420W
Power (sin.) at 4 Ohm : 2x600W
Power (sin.) at 4 Ohm (bridged) : 1x1500W
Power (sin.) at 2 Ohm : 2x750W
Frequency response : 20 – 20,000 Hz
Rate of ascent : 35 V/µs
Total – distortion factor : 0,01%
Attenuation factor at 8 Ohm/1kHz : 350
Noise voltage distance : >100dB
Input impedance symm. : 20kΩ
Channel separation : >65dB
Input sensitivity : 33dB/1Volt
Connections
Input : XLR
Output : SpeakON
Housing
Housing material : Front aluminum
Color : Silver
Height : 2 U (88mm)
Wide : 19″ / 482 mm
Depth : 358 mm
Weight : 15,5kg
