8″ In-Ceiling Speaker

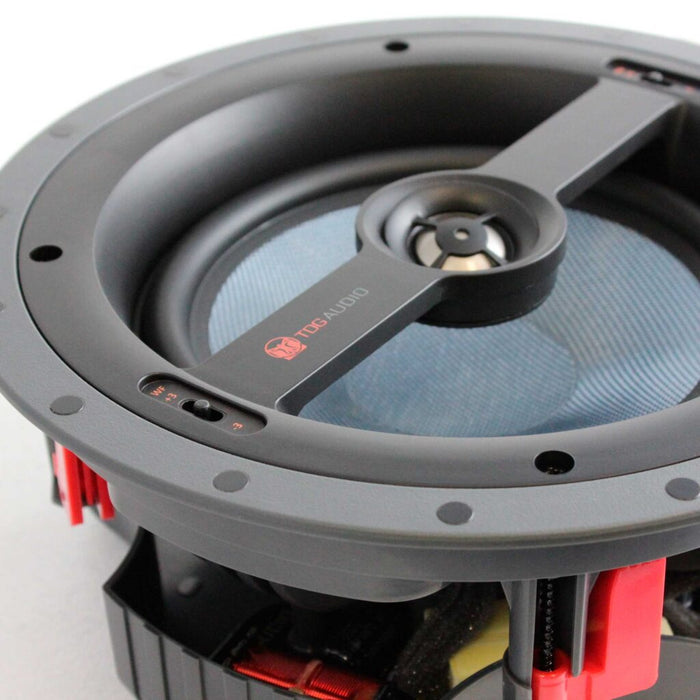

The TDG Audio NFC-83 delivers exceptional sound quality, backed by advanced materials and design features for a premium audio experience. Featuring an 8-inch Kevlar Trueform™ woofer, this speaker ensures powerful, distortion-free bass with remarkable clarity. Paired with a 1-inch Diamond Cut Titanium Pivoting Tweeter, it offers crisp, detailed high frequencies that bring depth and balance to your music and audio.

The NFC-83’s smooth, modern flangeless design and one-piece frame maximize rigidity, while the PRX™ Poly Resin CrossPoint Molds and reinforced 2-part doglegs ensure durability for a secure installation, even in thicker ceilings. Extra-wide threaded screws provide fast and easy fastening, and the XTS™ Moisture Seal-treated crossover enhances long-term performance. Fast and solid connection with spring-loaded, gold-plated terminals with banana plug option.

Key Features:

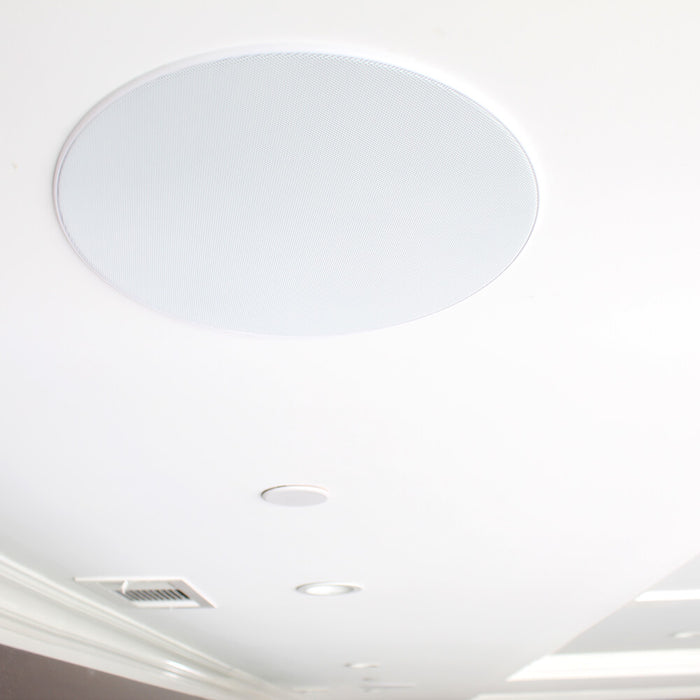

• Smooth Modern Flangeless Design
• One Piece Frame to Maximize Rigidity
• PRX™ Poly Resin CrossPoint Molds for Increased Rigidity
• PRX™ Poly Resin Doglegs

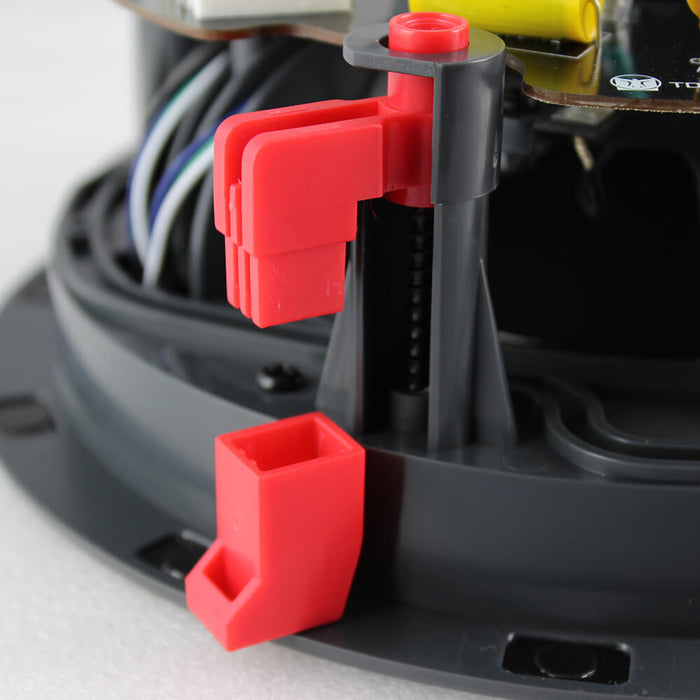

• Reinforced 2 Part Dogleg For Extra Thick Ceilings
• Extra Wide Threaded Screws for Quick Dogleg Fastening
• XTS™ Moisture Seal Treated Crossover

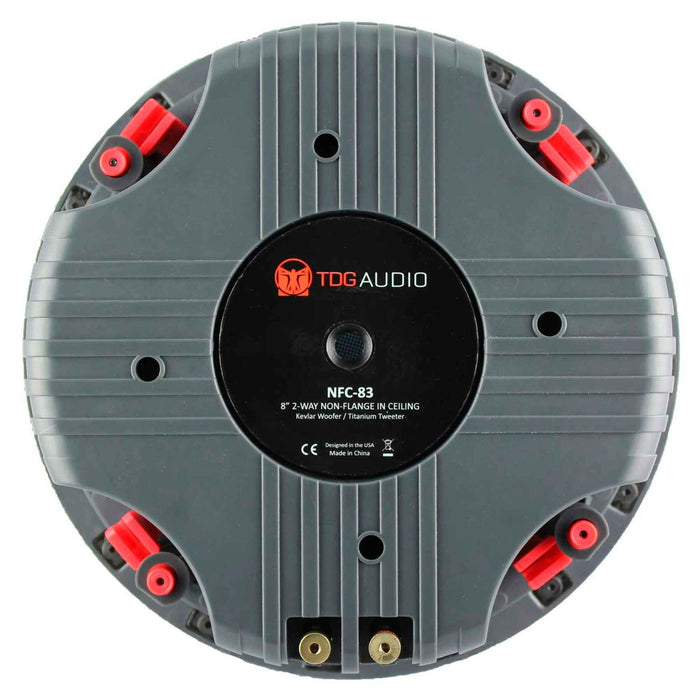

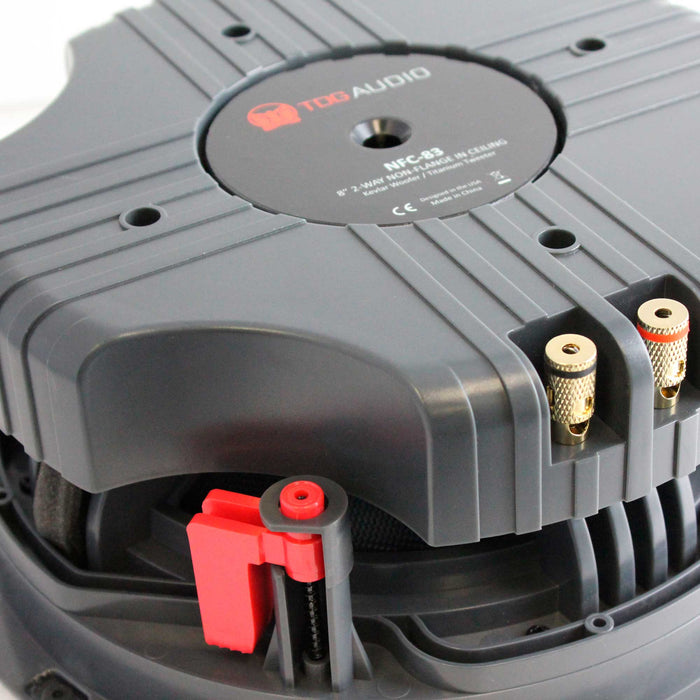

• Gold Plated Spring Loaded Push Terminals with Banana Plug Option
• Dual Coated (Zinc and Powder) Grill firmly attached with Neodymium Magnets
• Removable Scrim Cloth
• LIFETIME WARRANTY

Mechanical Specifications:

• Total Diameter with Grill: 11.25” (285mm)
• Mounting Depth: 4.417” (112.2mm)
• Cut Out Dimensions: 9.75” (248mm)
• Pre-Construction: Use PCBC-8

Acoustic Specifications:

• 8″ (203.2mm) Kevlar Trueform™ Woofer
• 1″ (25.4mm) Diamond Cut Titanium Pivoting Tweeter
• +/- 3db Tweeter & Bass Settings
• 5/175 WPC Power Handling
• 89db SPL
• Impedance: 8ohms (-3dB woofer switch) / 6ohms (OdB) / 4ohms (+3dB)
• Frequency Response 36Hz – 20kHz
• LIFETIME WARRANTY
