YHT-4960

by Yamaha
Original price €0.00 - Original price €0.00
Original price
€0.00
€0.00 - €0.00
Current price €0.00

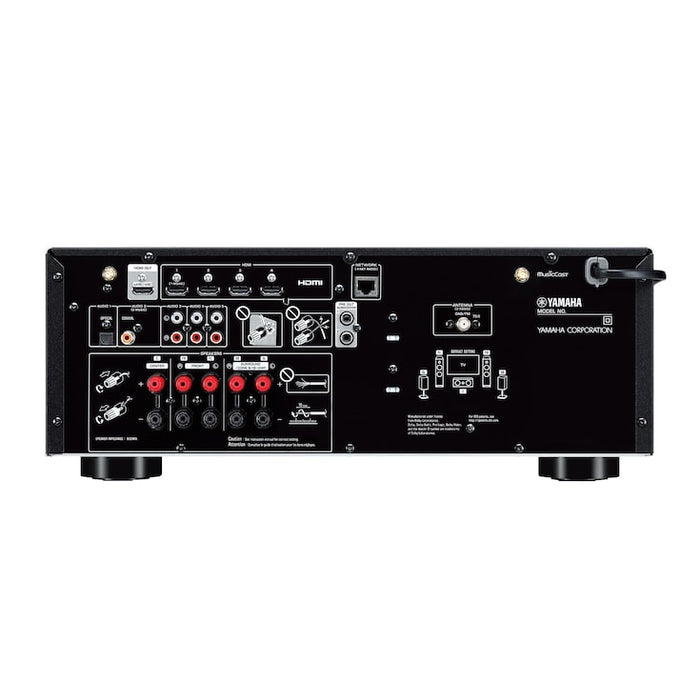

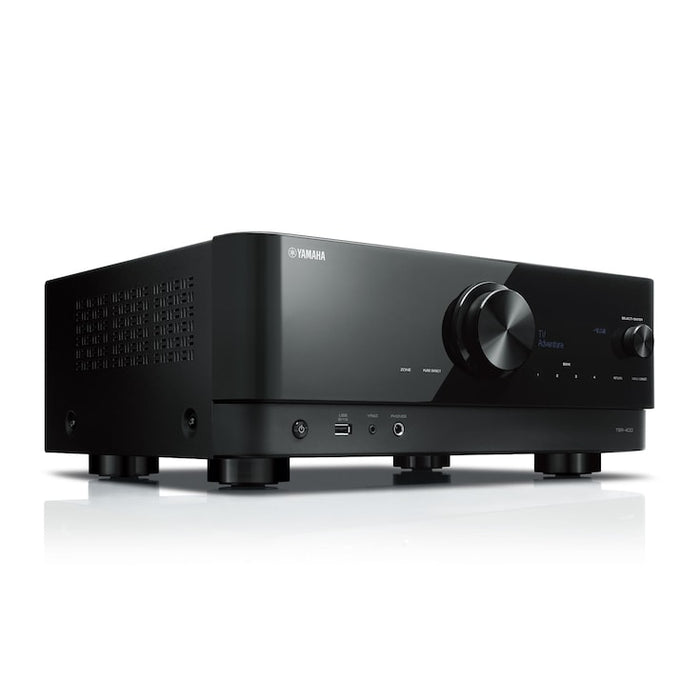

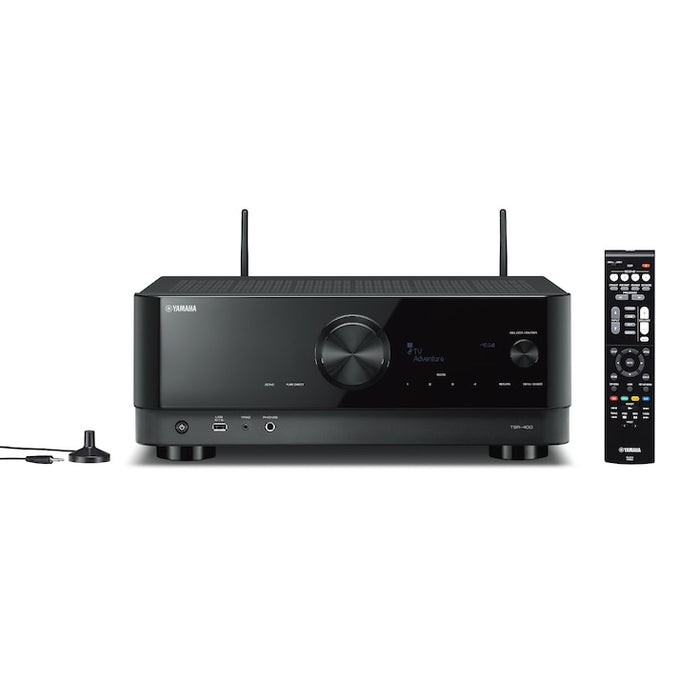

5.2 ch AV receiver with CINEMA DSP 3D, HDMI™ 4-in/1-out, wireless surround, compact 5.2-channel home theatre speaker package, perfect for upgrading your conventional TV sound to rich surround.

Main features

  • 5.2 Channel powerful surround sound
  • Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio
  • HDMI™ 4 in/1 out, 8K/60Hz, 4K/120Hz, HDR10+
  • Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
  • Voice control with Alexa and Google Assistant devices. *Availability varies by region
  • MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
  • HD Audio with CINEMA DSP 3D
  • YPAO™ sound optimisation

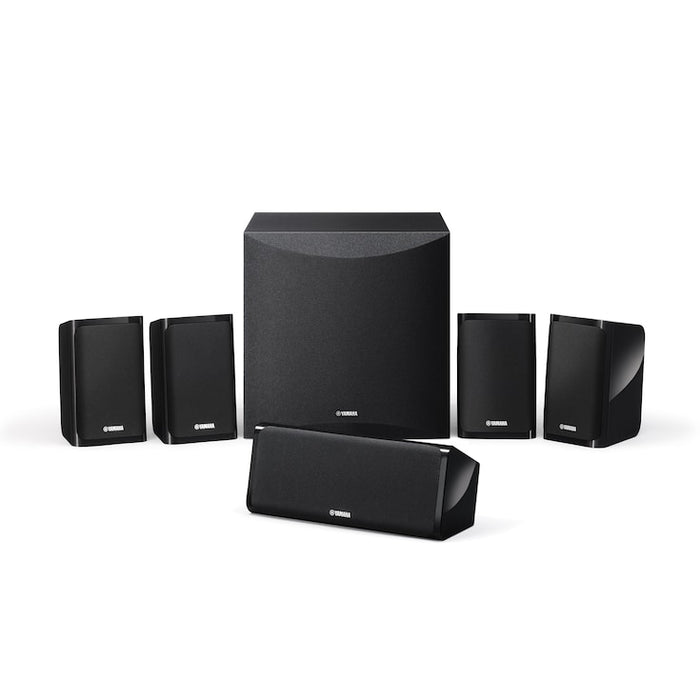

  • 5.2-channel speaker system
  • Wall mountable (front, centre and surround)

Product features

Sound and performance

5.2 Channel powerful surround sound. HD Audio with CINEMA DSP 3D. YPAO™ sound optimisation. Wall mountable (front, centre and surround).

Connectivity and playback

Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio. HDMI™ 4 in/1 out, 8K/60Hz, 4K/120Hz, HDR10+. MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound.

Design and construction

Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update. 5.2-channel speaker system.

Control and convenience

Voice control with Alexa and Google Assistant devices. *Availability varies by region.

Detailed specifications

Package Speaker — Channel5.1
Speaker System — System Frequency Response28 Hz–25 kHz
Impedance6 ohms (without subwoofer)
Front Speaker — TypeFull-range bass-reflex
Driver7 cm (2-3/4”) full-range cone
Nominal Input Power30 W
Maximum Input Power100 W
Sensitivity83 dB / 2.83 V / 1 m
Dimensions (W x H x D)112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
Weight0.59 kg / unit; 1.3 lbs. / unit
Center Speaker — TypeFull-range acoustic suspension
Driver7 cm (2-3/4”) full-range cone
Nominal Input Power30 W
Maximum Input Power100 W
Sensitivity84 dB / 2.83 V / 1 m
Dimensions (W x H x D)276 x 111 x 118 mm; 10-7/8” x 4-3/8” x 4-5/8”
Weight0.73 kg; 1.61 lbs.
Surround Speaker — TypeFull-range bass-reflex
Driver7 cm (2-3/4”) full-range cone
Nominal Input Power30 W
Maximum Input Power100 W
Sensitivity83 dB / 2.83 V / 1 m
Dimensions (W x H x D)112 x 176 x 116 mm; 4-3/8” x 6-7/8” x 4-5/8”
Weight0.59 kg / unit; 1.3 lbs. / unit
Subwoofer — TypeAdvanced YST II
Driver20 cm (8”) cone
Output Power50 W (5 ohms, 100 Hz, 10% THD)
Dynamic Power100 W (5 ohms)
Frequency Response28–200 Hz
Twisted Flare PortYes
Power Consumption40 W
Dimensions (W x H x D)291 x 292 x 341 mm; 11-1/2” x 11-1/2” x 13-3/8”
Weight8.5 kg; 18.7 lbs
