Pioneer TS-WX306B + GM-A3702

by Pioneer
Original price €245.00 - Original price €245.00
Original price
€245.00
€245.00 - €245.00
Current price €245.00

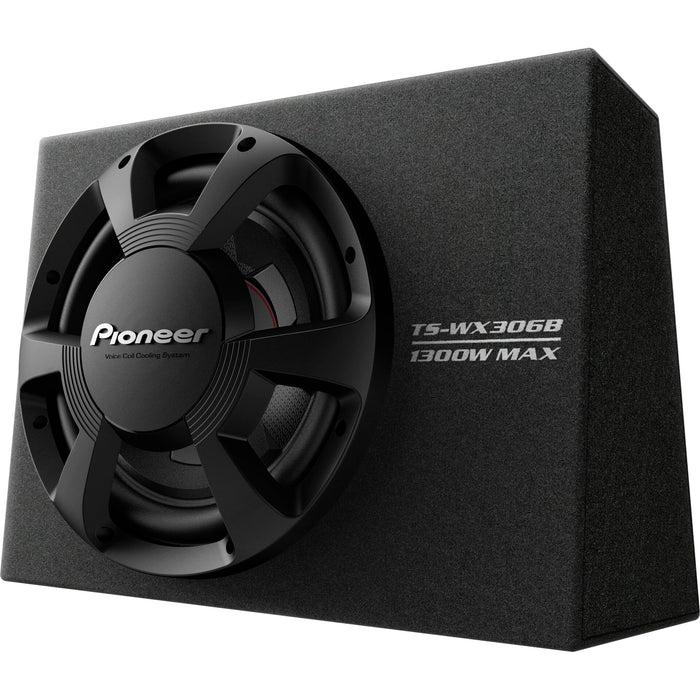

This bundle combines the Pioneer TS-WX306B subwoofer enclosure with the GM-A3702 amplifier. A 30 cm subwoofer supplied in a sealed enclosure, rated at 1300 W maximum and 350 W nominal input power. Pioneer GM-A3702 β€” 2-Channel Bridgeable Amplifier (500W).

Main features

  • TS-WX306B: Subwoofer Type: Passive subwoofer in sealed enclosure; external amplifier required
  • TS-WX306B: Nominal Input Power: 350 W
  • TS-WX306B: Frequency Response: 20 Hz - 125 Hz
  • TS-WX306B: Sensitivity: 94 dB
  • TS-WX306B: Woofer Material: IMPPβ„’
  • TS-WX306B: Dimensions: 491 mm (W) x 370 mm (H) x 329 mm (D)
  • GM-A3702: 2-channel bridgeable amplifier (500W)
  • GM-A3702: S/N Ratio: > 95 dB
  • GM-A3702: Size: 246 mm (W) x 60 mm (H) x 180 mm (D)

Product features

TS-WX306B β€” Pioneer TS-WX306B

A 30 cm subwoofer supplied in a sealed enclosure, rated at 1300 W maximum and 350 W nominal input power. An external amplifier is required.

TS-WX306B β€” Pioneer TS-WX306B

TS-WX306B β€” Passive Subwoofer

This subwoofer uses an external amplifier; it does not contain a built-in amplifier.

TS-WX306B β€” IMPPβ„’ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

TS-WX306B β€” IMPPβ„’ Cone

GM-A3702 β€” Pioneer GM-A3702

Pioneer GM-A3702 β€” 2-Channel Bridgeable Amplifier (500W).

GM-A3702 β€” Pioneer GM-A3702

GM-A3702 β€” Variable Low Pass Filter (LPF)

Adjust the upper frequency limit sent to a subwoofer to suit the system and listening preference.

GM-A3702 β€” Variable Low Pass Filter (LPF)

Detailed specifications

TS-WX306B β€” Product overview specifications

  • Diameter: 30 cm
  • Maximum input power: 1300 W

TS-WX306B β€” Key Features

  • Subwoofer Type: Passive subwoofer in sealed enclosure; external amplifier required
  • Nominal Input Power: 350 W
  • Frequency Response: 20 Hz - 125 Hz
  • Sensitivity: 94 dB
  • Woofer Material: IMPPβ„’
  • Dimensions: 491 mm (W) x 370 mm (H) x 329 mm (D)

TS-WX306B β€” Other Specifications

  • Speaker Grill: Included
  • Weight: 7.06 kg

GM-A3702 β€” Key Features

  • Channel(s): 2-Channel
  • Continuous Output Power: 60 W x 2 (4 Ξ©), 95 W x 2 (2 Ξ©), 190 W x 1 (4 Ξ© bridged)
  • Frequency Response: 10 Hz - 70 kHz
  • Distortion: < 0.05 %
  • S/N Ratio: > 95 dB
  • Load Impedance Capability: 2-8 ohm allowable
  • Low Pass Filter: Yes
  • Size: 246 mm (W) x 60 mm (H) x 180 mm (D)

GM-A3702 β€” Other Specifications

  • Speaker Terminals: Screw-type

Downloads

  • TS-WX306B β€” User Manuals (Arabic, English, French, Italian, Portuguese, Russian, Spanish)Open
  • TS-WX306B β€” Installation Manuals (Arabic, English, French, Italian, Portuguese, Russian, Spanish)Open
  • TS-WX306B β€” Installation Manuals (Dutch)Open
  • TS-WX306B β€” Compliance Documents (EU Declaration Of Conformity)Open
  • TS-WX306B β€” Compliance Documents (UK Declaration Of Conformity)Open
  • TS-WX306B β€” Addendums (English, French, Italian, Portuguese, Russian, Spanish)Open
  • GM-A3702 β€” User Manuals (Dutch, German)Open
  • GM-A3702 β€” User Manuals (English, French)Open
  • GM-A3702 β€” User Manuals (Italian, Spanish)Open
  • GM-A3702 β€” User Manuals (Russian)Open
  • GM-A3702 β€” Compliance Documents (UK Declaration Of Conformity)Open
  • GM-A3702 β€” Compliance Documents (EU Declaration Of Conformity)Open
