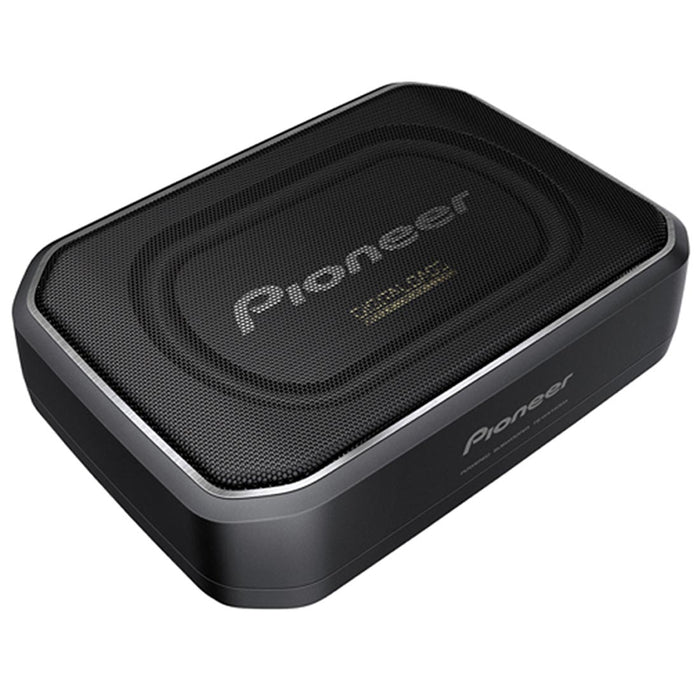

Pioneer TS-WX140DA

by Pioneer
Original price €235.00 - Original price €235.00
Original price
€235.00
€235.00 - €235.00
Current price €235.00

A compact active subwoofer with built-in Class D amplification and three DIGITAL BASS CONTROL modes: DEEP, NATURAL and DYNAMIC. Its enclosure measures 280 × 200 × 70 mm.

Main features

  • Class D Technology (Amplifier)
  • Maximum input power: 170 W
  • Nominal input power: 50 W
  • Dimensions: 280 mm (W) x 200 mm (H) x 70 mm (D)

Product features

Pioneer TS-WX140DA

A compact active subwoofer with built-in Class D amplification and three DIGITAL BASS CONTROL modes: DEEP, NATURAL and DYNAMIC. Its enclosure measures 280 × 200 × 70 mm.

Pioneer TS-WX140DA

Amplified Subwoofer

An integrated amplifier and compact enclosure provide a self-contained bass upgrade.

Amplified Subwoofer

Space Saving Subwoofer

The compact enclosure offers installation options in limited spaces. Check the published dimensions against the vehicle.

Space Saving Subwoofer

Detailed specifications

Key Features

  • Subwoofer Type: Active subwoofer
  • Nominal Input Power: 50 W
  • Class D Technology: Yes
  • Space Saving Subwoofer: Yes
  • Frequency Response: DEEP Bass Mode: 20 - 200 Hz, DYNAMIC Bass Mode: 40 - 160 Hz, NATURAL Bass Mode: 40 - 200 Hz
  • Sensitivity: DEEP Bass Mode: 95dB, DYNAMIC Bass Mode: 100dB, NATURAL Bass Mode: 98dB
  • Digital Bass Control: Yes
  • Woofer Material: Aluminium
  • Wired Remote Control: Yes
  • Dimensions: 280 mm (W) x 200 mm (H) x 70 mm (D)

Other Specifications

  • Speaker Grill: Included
  • Weight: 3.30 kg

Downloads

  • Installation Manuals (Dutch)Open
  • Installation Manuals (English, French, Spanish, Portuguese, Russian, Arabic)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
