Pioneer TS-G1010F

by Pioneer
Original price €40.00 - Original price €40.00
Original price
€40.00
€40.00 - €40.00
Current price €40.00

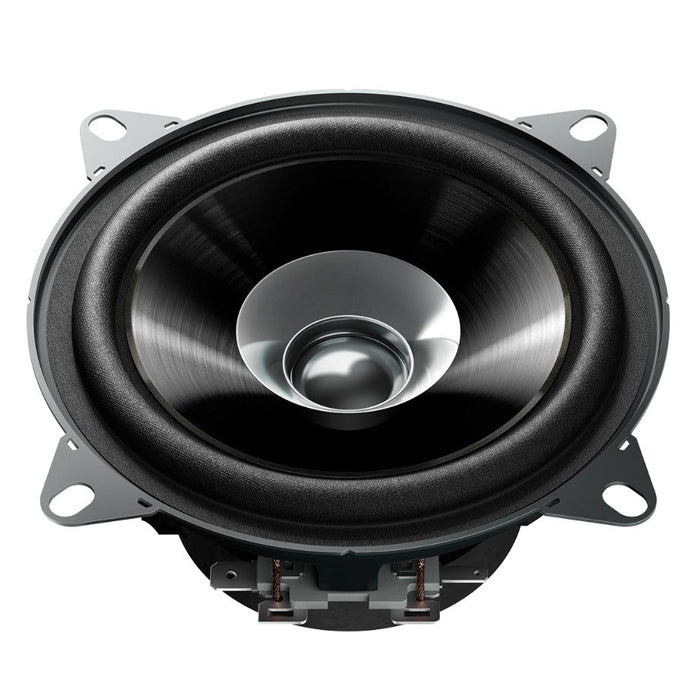

Pioneer TS-G1010F — 10cm Dual Cone Speakers (190W).

Main features

  • Diameter Size: 10 cm
  • Maximum input power: 190 W
  • Nominal input power: 30 W
  • Impedance: 4 Ω

Product features

Pioneer TS-G1010F

Pioneer TS-G1010F — 10cm Dual Cone Speakers (190W).

Pioneer TS-G1010F

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Detailed specifications

Key Features

  • Series: G-Series
  • Diameter Size: 10 cm
  • Maximum input power: 190 W
  • Nominal input power: 30 W
  • Frequency response: 44 Hz - 25,000 Hz
  • Sensitivity: 89 dB
  • Impedance: 4 Ω
  • Dimensions: 134 mm x 60 mm
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Polypropylene (PP)

Other Specifications

  • Cut-out Hole: 106 mm
  • Mounting Depth: 43 mm
  • Speaker Grill: Included
  • Weight: 0.34 kg

Downloads

  • User Manuals (Ukranian)Open
  • Installation Manuals (Dutch)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
  • Addendums (English, French, German, Italian, Portuguese, Russian, Spanish)Open
