Pioneer TS-D12D4

by Pioneer
Original price €205.00 - Original price €205.00
Original price
€205.00
€205.00 - €205.00
Current price €205.00

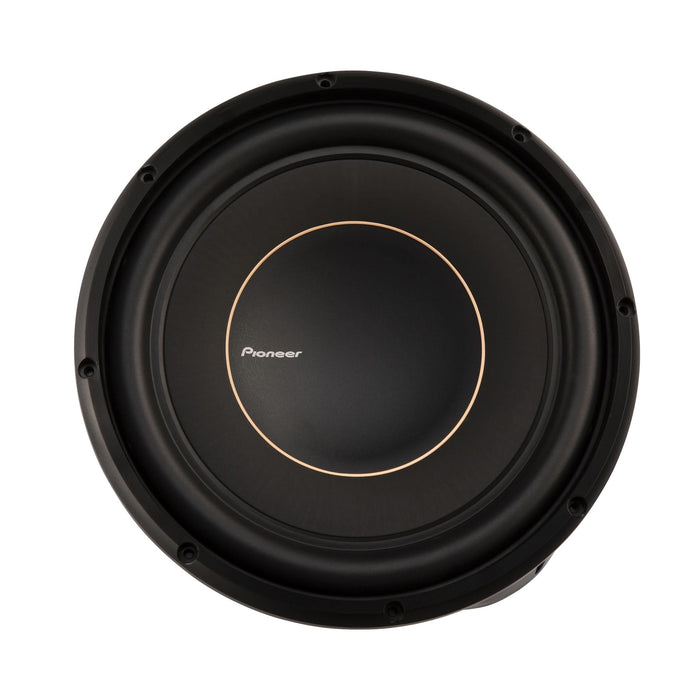

Pioneer TS-D12D4 — 30cm / 12 inch D-Series Component Subwoofer (2000 W).

Main features

  • Diameter: 30 cm
  • Maximum input power: 2000 W
  • Nominal input power: 600 W
  • Impedance: 4 Ω

Product features

Pioneer TS-D12D4

Pioneer TS-D12D4 — 30cm / 12 inch D-Series Component Subwoofer (2000 W).

Pioneer TS-D12D4

Component Speakers

Separate drivers allow more flexibility when positioning the woofer and tweeter in the vehicle.

Component Speakers

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Detailed specifications

Key Features

  • Series: D-Series
  • Diameter Size: 30 cm
  • Maximum input power: 2000 W
  • Nominal input power: 600 W
  • Frequency response: 20 Hz - 4,700 Hz
  • Sensitivity: 78 dB
  • Impedance: 4 Ω Dual Voice Coil (DVC)
  • Dimensions: 318 mm x 176 mm
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Aramid Fiber Interlaced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications

  • Cut-out Hole: 281 mm
  • Mounting Depth: 157 mm
  • Recommended Enclosure (ft³/litre): 1 / 28.3
  • Speaker Grill: Not Included
  • Weight: 5.30 kg
  • CarSoundFit App: Yes

Key Features

  • Subwoofer Type: Component Subwoofer

Downloads

  • User Manuals (English, French, German, Italian, Portuguese, Russian, Spanish)Open
  • Installation Manuals (Dutch)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Addendums (English, French, German, Italian, Portuguese, Russian, Spanish)Open
