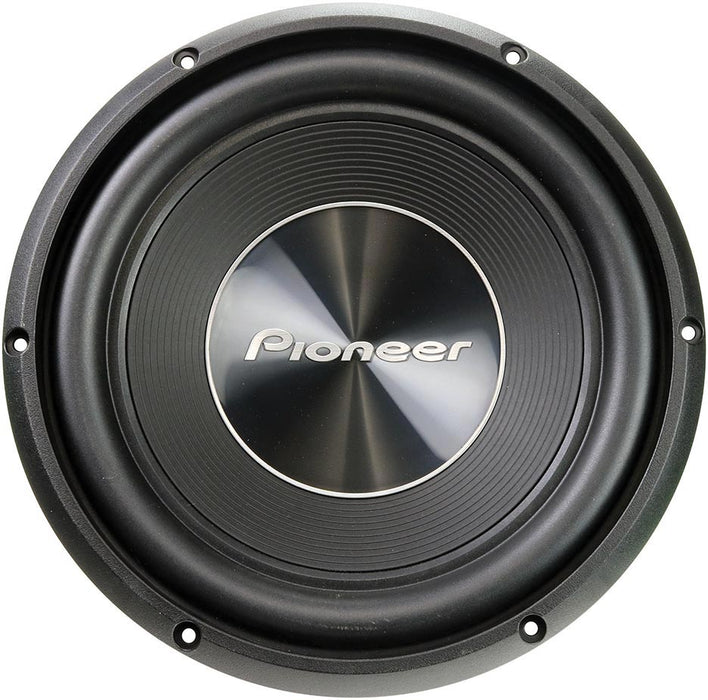

Pioneer TS-A250D4

by Pioneer
Original price €108.00 - Original price €108.00
Original price
€108.00
€108.00 - €108.00
Current price €108.00

Pioneer TS-A250D4 — 25 cm 4Ω enclosure-type dual voice coil subwoofer (1300W).

Main features

  • Diameter: 25 cm
  • Maximum input power: 1300 W
  • Nominal input power: 400 W
  • Impedance: 4 Ω

Product features

Pioneer TS-A250D4

Pioneer TS-A250D4 — 25 cm 4Ω enclosure-type dual voice coil subwoofer (1300W).

Pioneer TS-A250D4

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Detailed specifications

Key Features

  • Series: A-Series
  • Diameter Size: 25 cm
  • Maximum input power: 1300 W
  • Nominal input power: 400 W
  • Frequency response: 20 Hz - 2000 Hz
  • Sensitivity: 74 dB
  • Impedance: 4 Ω Dual Voice Coil (DVC)
  • Dimensions: 267 mm x 149 mm
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Glass Fiber & Mica Reinforced Interlaced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications

  • Cut-out Hole: 230 mm
  • Mounting Depth: 133 mm
  • Recommended Enclosure (ft³/litre): 0.7 / 19.8
  • Speaker Grill: Not Included
  • Weight: 4.01 kg

Key Features

  • Subwoofer Type: Component Subwoofer

Downloads

  • User Manuals (English, French, German, Italian, Portuguese, Russian, Spanish)Open
  • Installation Manuals (Dutch)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
