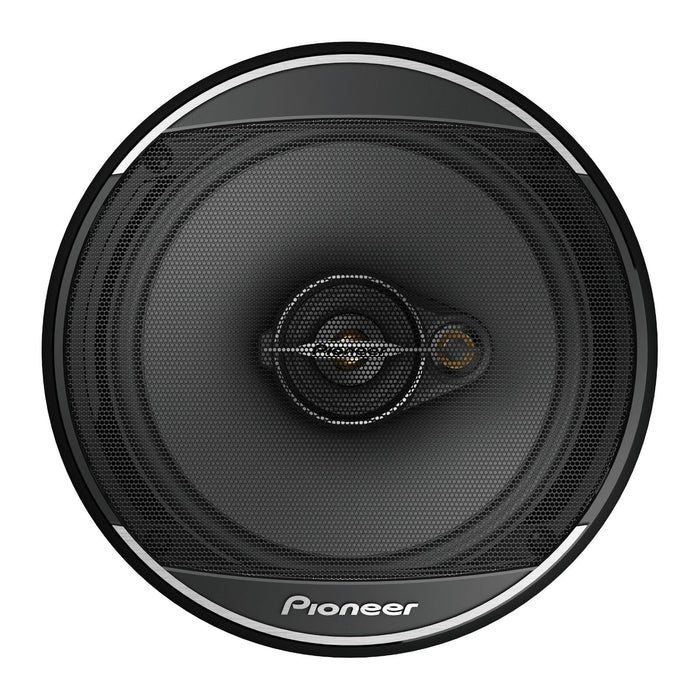

Pioneer TS-A1671F

by Pioneer
Original price €92.50 - Original price €92.50
Original price
€92.50
€92.50 - €92.50
Current price €92.50

Pioneer TS-A1671F — 16.5cm 3-Way Coaxial System (320W).

Main features

  • Diameter Size: 16.5 cm
  • Maximum input power: 320 W
  • Nominal input power: 70 W
  • Impedance: 4 Ω

Product features

Pioneer TS-A1671F

Pioneer TS-A1671F — 16.5cm 3-Way Coaxial System (320W).

Pioneer TS-A1671F

Coaxial Speakers

Multiple drivers share a single speaker assembly for a compact installation.

Coaxial Speakers

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Multi-Fit Adaptor

The included adaptor provides additional mounting options for compatible speaker locations.

Multi-Fit Adaptor

Open & Smooth™

Pioneer’s driver design aims for a smooth transition between midrange and treble and a broad listening area.

Open & Smooth™

Dimensions and installation

Dimensions and installation

Detailed specifications

Key Features

  • Series: A-Series
  • Diameter Size: 16.5 cm
  • Maximum input power: 320 W
  • Nominal input power: 70 W
  • Frequency response: 37 Hz - 31,000 Hz
  • Sensitivity: 91 dB
  • Impedance: 4 Ω
  • Dimensions: 165 mm x 72 mm
  • Open & Smooth™: Yes
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Carbon & Mica reinforced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications

  • Cut-out Hole: 144 mm
  • Mounting Depth: 48 mm
  • Multi-fit Adapter included: Yes
  • Speaker Grill: Included
  • Weight: 0.81 kg

Downloads

  • Installation Manuals (Dutch)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
  • Addendums (English, French, German, Italian, Spanish, Portuguese, Russian, Arabic)Open
