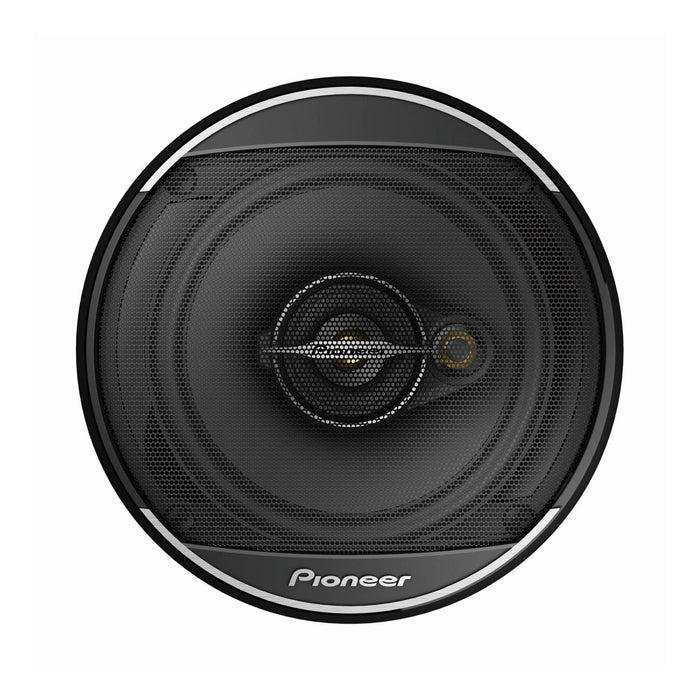

Pioneer TS-A1371F — 13cm 3-Way Coaxial System (300W).

Main features

  • Diameter Size: 13 cm
  • Maximum input power: 300 W
  • Nominal input power: 50 W
  • Impedance: 4 Ω

Product features

Pioneer TS-A1371F

Pioneer TS-A1371F — 13cm 3-Way Coaxial System (300W).

Pioneer TS-A1371F

Coaxial Speakers

Multiple drivers share a single speaker assembly for a compact installation.

Coaxial Speakers

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Open & Smooth™

Pioneer’s driver design aims for a smooth transition between midrange and treble and a broad listening area.

Open & Smooth™

Dimensions and installation

Dimensions and installation

Detailed specifications

Key Features

  • Series: A-Series
  • Diameter Size: 13 cm
  • Maximum input power: 300 W
  • Nominal input power: 50 W
  • Frequency response: 44 Hz - 52,000 Hz
  • Sensitivity: 89 dB
  • Impedance: 4 Ω
  • Dimensions: 156 mm x 73 mm
  • Open & Smooth™: Yes
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Carbon & Mica reinforced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications

  • Cut-out Hole: 121 mm
  • Mounting Depth: 54 mm
  • Speaker Grill: Included
  • Weight: 0.70 kg

Downloads

  • Installation Manuals (Dutch)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Addendums (Arabic, English, French, German, Italian, Spanish, Portuguese, Russian)Open
  • Addendums (Arabic, English, French, German, Italian, Portuguese, Russian, Spanish)Open
