Pioneer TS-A1081F

by Pioneer
Original price €89.99 - Original price €89.99
Original price
€89.99
€89.99 - €89.99
Current price €89.99

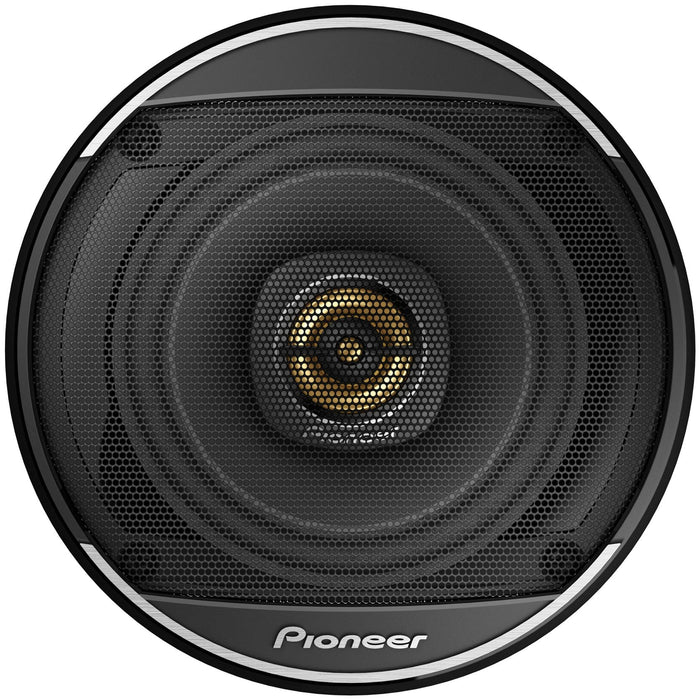

Pioneer TS-A1081F — 10cm 2-Way Coaxial System (230 W).

Main features

  • Diameter Size: 10 cm
  • Maximum input power: 230 W
  • Nominal input power: 50 W
  • Impedance: 4 Ω

Product features

Pioneer TS-A1081F

Pioneer TS-A1081F — 10cm 2-Way Coaxial System (230 W).

Pioneer TS-A1081F

Coaxial Speakers

Multiple drivers share a single speaker assembly for a compact installation.

Coaxial Speakers

IMPP™ Cone

A lightweight, rigid Injection Moulded Polypropylene cone supports controlled driver movement.

IMPP™ Cone

Open & Smooth™

Pioneer’s driver design aims for a smooth transition between midrange and treble and a broad listening area.

Open & Smooth™

Dimensions and installation

Dimensions and installation

Detailed specifications

Key Features

  • Series: A-Series
  • Diameter Size: 10 cm
  • Maximum input power: 230 W
  • Nominal input power: 50 W
  • Frequency response: 82 Hz - 40,000 Hz
  • Sensitivity: 90 dB
  • Impedance: 4 Ω
  • Dimensions: 135 mm x 60 mm
  • Open & Smooth™: Yes
  • IMPP™ Composite Cone: Yes
  • Magnets: Ferrite
  • Woofer material: Carbon & Mica reinforced Injection Molded PolyPropylene (IMPP™) Cone

Other Specifications

  • Cut-out Hole: 106 mm
  • Mounting Depth: 43 mm
  • Speaker Grill: Included
  • Weight: 0.45 kg

Downloads

  • Installation Manuals (Dutch)Open
  • Compliance Documents (UK Declaration Of Conformity)Open
  • Compliance Documents (EU Declaration Of Conformity)Open
  • Addendums (English, French, German, Italian, Spanish, Portuguese, Russian, Arabic)Open
