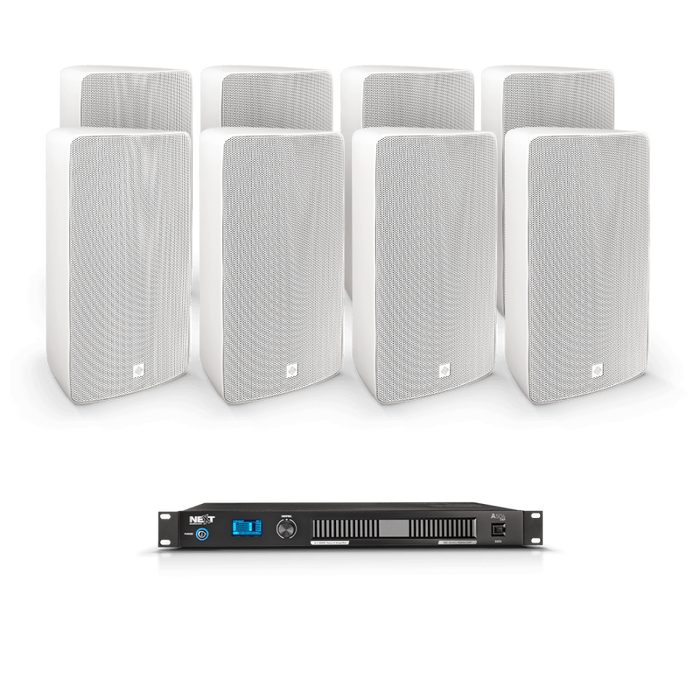

| Package Contents | 8 Γ T8W + 1 Γ A504 |
|---|
| T8 β Model note | Specifications shown are those of the base T8 model; this product contains the T8W variant. |
|---|
| T8 β Product Type | 2-Way Outdoor Passive Speaker (16Ξ©/100V) |
|---|
| T8 β Frequency Response (-6dB) | 60Hz - 18kHz |
|---|
| T8 β Nominal Coverage (-6dB) | 90Β° H x 50ΒΊ V |
|---|
| T8 β RMS Power | 150W |
|---|
| T8 β Program Power | 300W |
|---|
| T8 β Nominal Impedance | 16Ξ© (low impedance mode) |
|---|
| T8 β Sensitivity (1W, 1m) | 94dB |
|---|
| T8 β Maximum SPL Pgm/Peak | 119dB (calculated) |
|---|
| T8 β Low Frequency Driver | 8" Woofer |
|---|
| T8 β High Frequency Driver | 1" Driver |
|---|
| T8 β Transformer Taps 100V | 37.5W | 75W | 150W |
|---|
| T8 β Recommended High-Pass Filter | 38Hz, 18dB/oct Butterworth |
|---|
| T8 β Input Connectors | 4 Pins Screw Connector (IN/OUT) |
|---|
| T8 β Recommended Amplifier | MX120 | MX350 |
|---|
| T8 β Grille | Aluminum Acoustically Invisible |
|---|
| T8 β Construction | Weatherproof Plastic Cabinet |
|---|
| T8 β IP Rating | IP65 |
|---|
| T8 β Dimensions (WxHxD) | 240 x 450 x 287mm (9.4 x 17.7 x 11.3 in) |
|---|
| T8 β Fixation | Wall U-Bracket (included) |
|---|
| T8 β Net Weight | 10.7kg (23.6lb) |
|---|
| T8 β Shipping Weight | 12.2kg (26.9lb) |
|---|
| T8 β Accessories | Hinged Wall Bracket for T6/T8 (not included) |
|---|
| A504 DSP β Product Type | Class D Amplifier with DSP |
|---|
| A504 DSP β Frequency Response | 20Hz - 20kHz (+0 / -1dB) |
|---|
| A504 DSP β Amplifier Technology | Class D |
|---|
| A504 DSP β Number of Amplifier Channels | 4 Channels |
|---|
| A504 DSP β Amplifier Power - Stereo 8Ξ© | 4 x 250W |
|---|
| A504 DSP β Amplifier Power - Stereo 4Ξ© | 4 x 500W |
|---|
| A504 DSP β Amplifier Power - Bridge 8Ξ© | 2 x 1000W |
|---|
| A504 DSP β Amplifier Power - 100V | 2 x 1000W |
|---|
| A504 DSP β Amplifier Gain | 34dBΒ±0.5dB |
|---|
| A504 DSP β Speaker Output | 4Ξ© - 16Ξ© | 100V |
|---|
| A504 DSP β Damping Factor | >180 |
|---|
| A504 DSP β THD+N | <0.15% |
|---|
| A504 DSP β SNR (Signal to Noise Ratio) | >95dB |
|---|
| A504 DSP β Crosstalk | >50dB |
|---|
| A504 DSP β Input Sensitivity | 0.9V - 1.1V (0 / Β±1dBV) |
|---|
| A504 DSP β Input Impedance | Balanced: 20kΞ© | Unbalanced: 10kΞ© |
|---|
| A504 DSP β DSP Technology | 4 IN x 4 OUT - 32bit | 192kHz DSP |
|---|
| A504 DSP β Latency | 0.66ms |
|---|
| A504 DSP β DSP Adjustable Parameters | PEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute |
|---|
| A504 DSP β Delay Adjustment | 62.4ms / 21.42m per Channel |
|---|
| A504 DSP β Control Type | On the Amplifier Encoder and LCD | Via USB and Suplied PC Software |
|---|
| A504 DSP β Audio Signal Inputs | Analog Audio |
|---|
| A504 DSP β Input Connectors | 4 x Neutrik XLR |
|---|
| A504 DSP β Speakers Output Connectors | 4 x Neutrik NL4 |
|---|
| A504 DSP β Protections | Full short-circuit, Open Circuit, Thermal, Ultrasonic, DC and RF protection stable into reactive or mismatched loads, Turn ON/OFF, Muting |
|---|
| A504 DSP β Operating Temperature Range | 0ΒΊC - 40ΒΊC |
|---|
| A504 DSP β Cooling Type | Speed Controlled Fan |
|---|
| A504 DSP β Power Supply | Switching Mode Power Supply (SMPS) |
|---|
| A504 DSP β Power Input | AC 110V - 120V | AC 220V - 240V 50Hz/60Hz Β±10% |
|---|
| A504 DSP β Mains Connector | Standard IEC socket |
|---|
| A504 DSP β Power Consumption | 1100W |
|---|
| A504 DSP β Fittings | 1U 19" Rack |
|---|
| A504 DSP β Dimensions (WxHxD) | 483 x 44 x 290mm (19 x 1.73 x 11.4 in) |
|---|
| A504 DSP β Net Weight | 6kg (13.2lb) |
|---|
| A504 DSP β Shipping Weight | 7.2kg (15.9 lb) |
|---|
