NEXT Audiogroup 8T8.A504

Original price €0.00 - Original price €0.00
Original price
€0.00
€0.00 - €0.00
Current price €0.00

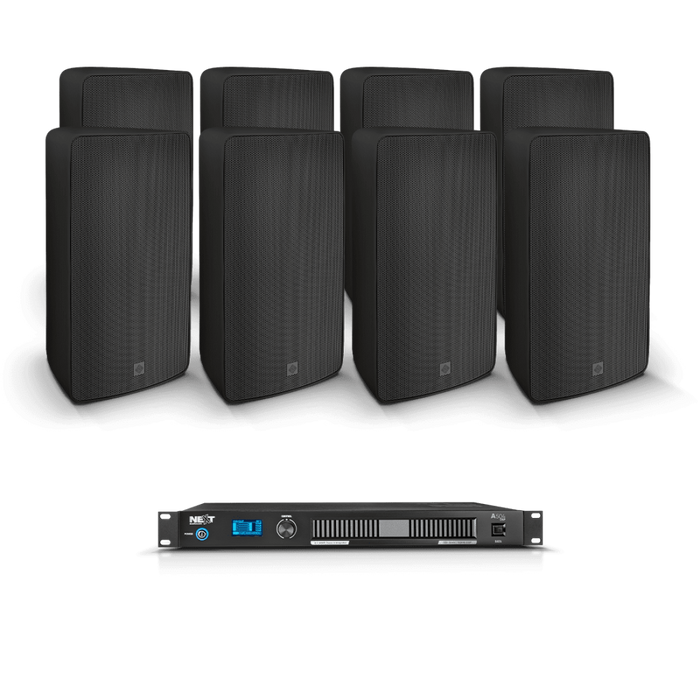

Package contents: 8 Γ— T8 (2-Way Outdoor Passive Speaker (16Ξ©/100V)) + 1 Γ— A504 (Class D Amplifier with DSP).

Main features

  • Package contents: 8 Γ— T8 + 1 Γ— A504
  • T8 β€” 2-Way Outdoor Passive Speaker (16Ξ©/100V)
  • T8 β€” Frequency Response (-6dB): 60Hz - 18kHz
  • T8 β€” RMS Power: 150W
  • T8 β€” Program Power: 300W
  • A504 DSP β€” Class D Amplifier with DSP
  • A504 DSP β€” Frequency Response: 20Hz - 20kHz (+0 / -1dB)
  • A504 DSP β€” Speaker Output: 4Ξ© - 16Ξ© | 100V

Product features

T8 β€” 100V / 16Ξ© Input

The built-in transformer lets you run the speaker from a 100V line or a low-impedance 16Ξ© connection, depending on the installation.

T8 β€” Bracket Included

A bracket in the box lets you mount the speaker on a wall or ceiling.

T8 β€” Easy Install

Setup needs no advanced technical skill or specialized tools.

T8 β€” Ver./Hor. Installation

The speaker can be mounted either horizontally or vertically to suit the space.

T8 β€” Weatherproof

The IP65 enclosure suits many environments, including outdoor areas that need weather protection.

T8 β€” Available in Black or White

The product comes in black or white, so select the color when ordering.

A504 DSP β€” Ultra-Thin Design

Slim chassis that saves rack space while keeping a sleek look.

A504 DSP β€” Matrix

An input/output matrix for routing each input to any output port.

A504 DSP β€” 4Ξ© Minimum Imp.

Supports loads down to 4Ξ©, allowing more speakers per channel.

A504 DSP β€” DSP

Built-in digital signal processor for equalizing sound to suit a venue or installation.

A504 DSP β€” 100V Line Output

Powers medium to large systems using 100V line speakers.

A504 DSP β€” Dedicated Presets

Stored presets for different applications, selectable as needed.

Detailed specifications

Package Contents8 Γ— T8 + 1 Γ— A504
T8 β€” Product Type2-Way Outdoor Passive Speaker (16Ξ©/100V)
T8 β€” Frequency Response (-6dB)60Hz - 18kHz
T8 β€” Nominal Coverage (-6dB)90Β° H x 50ΒΊ V
T8 β€” RMS Power150W
T8 β€” Program Power300W
T8 β€” Nominal Impedance16Ξ© (low impedance mode)
T8 β€” Sensitivity (1W, 1m)94dB
T8 β€” Maximum SPL Pgm/Peak119dB (calculated)
T8 β€” Low Frequency Driver8" Woofer
T8 β€” High Frequency Driver1" Driver
T8 β€” Transformer Taps 100V37.5W | 75W | 150W
T8 β€” Recommended High-Pass Filter38Hz, 18dB/oct Butterworth
T8 β€” Input Connectors4 Pins Screw Connector (IN/OUT)
T8 β€” Recommended AmplifierMX120 | MX350
T8 β€” GrilleAluminum Acoustically Invisible
T8 β€” ConstructionWeatherproof Plastic Cabinet
T8 β€” IP RatingIP65
T8 β€” Dimensions (WxHxD)240 x 450 x 287mm (9.4 x 17.7 x 11.3 in)
T8 β€” FixationWall U-Bracket (included)
T8 β€” Net Weight10.7kg (23.6lb)
T8 β€” Shipping Weight12.2kg (26.9lb)
T8 β€” AccessoriesHinged Wall Bracket for T6/T8 (not included)
A504 DSP β€” Product TypeClass D Amplifier with DSP
A504 DSP β€” Frequency Response20Hz - 20kHz (+0 / -1dB)
A504 DSP β€” Amplifier TechnologyClass D
A504 DSP β€” Number of Amplifier Channels4 Channels
A504 DSP β€” Amplifier Power - Stereo 8Ξ©4 x 250W
A504 DSP β€” Amplifier Power - Stereo 4Ξ©4 x 500W
A504 DSP β€” Amplifier Power - Bridge 8Ξ©2 x 1000W
A504 DSP β€” Amplifier Power - 100V2 x 1000W
A504 DSP β€” Amplifier Gain34dBΒ±0.5dB
A504 DSP β€” Speaker Output4Ξ© - 16Ξ© | 100V
A504 DSP β€” Damping Factor>180
A504 DSP β€” THD+N<0.15%
A504 DSP β€” SNR (Signal to Noise Ratio)>95dB
A504 DSP β€” Crosstalk>50dB
A504 DSP β€” Input Sensitivity0.9V - 1.1V (0 / Β±1dBV)
A504 DSP β€” Input ImpedanceBalanced: 20kΞ© | Unbalanced: 10kΞ©
A504 DSP β€” DSP Technology4 IN x 4 OUT - 32bit | 192kHz DSP
A504 DSP β€” Latency0.66ms
A504 DSP β€” DSP Adjustable ParametersPEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute
A504 DSP β€” Delay Adjustment62.4ms / 21.42m per Channel
A504 DSP β€” Control TypeOn the Amplifier Encoder and LCD | Via USB and Suplied PC Software
A504 DSP β€” Audio Signal InputsAnalog Audio
A504 DSP β€” Input Connectors4 x Neutrik XLR
A504 DSP β€” Speakers Output Connectors4 x Neutrik NL4
A504 DSP β€” ProtectionsFull short-circuit, Open Circuit, Thermal, Ultrasonic, DC and RF protection stable into reactive or mismatched loads, Turn ON/OFF, Muting
A504 DSP β€” Operating Temperature Range0ΒΊC - 40ΒΊC
A504 DSP β€” Cooling TypeSpeed Controlled Fan
A504 DSP β€” Power SupplySwitching Mode Power Supply (SMPS)
A504 DSP β€” Power InputAC 110V - 120V | AC 220V - 240V 50Hz/60Hz Β±10%
A504 DSP β€” Mains ConnectorStandard IEC socket
A504 DSP β€” Power Consumption1100W
A504 DSP β€” Fittings1U 19" Rack
A504 DSP β€” Dimensions (WxHxD)483 x 44 x 290mm (19 x 1.73 x 11.4 in)
A504 DSP β€” Net Weight6kg (13.2lb)
A504 DSP β€” Shipping Weight7.2kg (15.9 lb)
