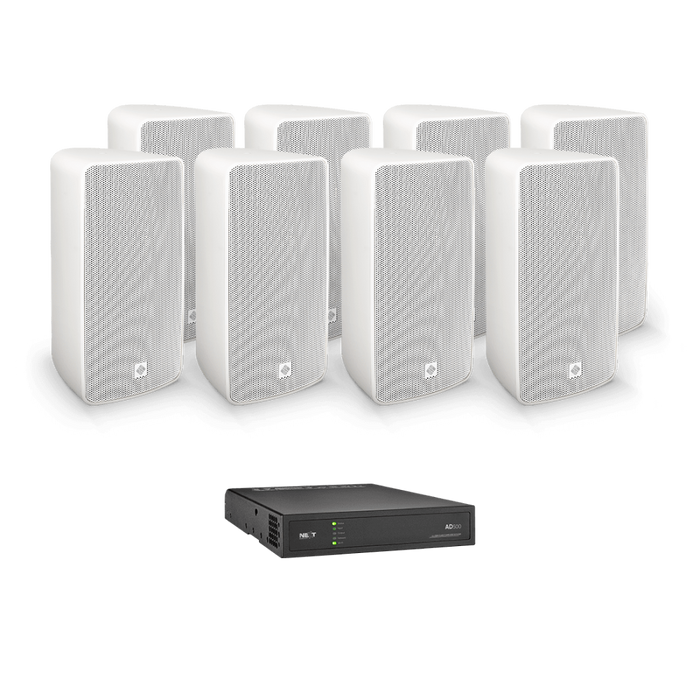

| Package Contents | 4 pairs (8 speakers) of T6W + 1 Γ AD500 |
|---|
| T6 β Model note | Specifications shown are those of the base T6 model; this product contains the T6W variant. |
|---|
| T6 β Product Type | 2-Way Outdoor Passive Speaker (16Ξ©/100V) |
|---|
| T6 β Frequency Response (-6dB) | 60Hz - 18kHz |
|---|
| T6 β Nominal Coverage (-6dB) | 100Β° H x 75ΒΊ V |
|---|
| T6 β RMS Power | 80W |
|---|
| T6 β Program Power | 160W |
|---|
| T6 β Nominal Impedance | 16Ξ© (low impedance mode) |
|---|
| T6 β Sensitivity (1W, 1m) | 89dB |
|---|
| T6 β Maximum SPL Pgm/Peak | 111dB (calculated) |
|---|
| T6 β Low Frequency Driver | 6.5" Woofer |
|---|
| T6 β High Frequency Driver | 1" Driver |
|---|
| T6 β Transformer Taps 100V | 20W | 40W | 80W |
|---|
| T6 β Recommended High-Pass Filter | 56Hz, 18dB/oct Butterworth |
|---|
| T6 β Input Connectors | 4 Pins Screw Connector (IN/OUT) |
|---|
| T6 β Recommended Amplifier | MX120 | MX350 |
|---|
| T6 β Grille | Aluminum Acoustically Invisible |
|---|
| T6 β Construction | Weatherproof Plastic Cabinet |
|---|
| T6 β IP Rating | IP65 |
|---|
| T6 β Dimensions (WxHxD) | 182 x 362 x 226mm (7.2 x 14.3 x 8.9 in) |
|---|
| T6 β Fixation | Wall U-Bracket (included) |
|---|
| T6 β Net Weight | 6.5kg (14.3lb) |
|---|
| T6 β Shipping Weight | 15.6kg (34.4lb) |
|---|
| T6 β Accessories | Hinged Wall Bracket for T6/T8 (not included) |
|---|
| AD500 β Product Type | Class D Amplifier with DSP |
|---|
| AD500 β Frequency Response | 20Hz - 20kHz (+0 / -0.25dB) |
|---|
| AD500 β Amplifier Technology | UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion |
|---|
| AD500 β Number of Amplifier Channels | 4 Channels Low Impedance (LoZ) / 2 Channels High Impedance (HiZ) |
|---|
| AD500 β Amplifier Power - Stereo 8Ξ© | 4 x 125W |
|---|
| AD500 β Amplifier Power - Stereo 4Ξ© | 4 x 125W |
|---|
| AD500 β Amplifier Power - 100V | 2 x 250W |
|---|
| AD500 β Amplifier Power - 70V | 2 x 250W |
|---|
| AD500 β Speaker Output | 4Ξ© - 16Ξ© | 70V | 100V |
|---|
| AD500 β Zones Output | 4-Zones Output |
|---|
| AD500 β THD+N | <0.05% (20Hz-20kHz, 8Ξ© load, 3dB below rated power) |
|---|
| AD500 β SNR (Signal to Noise Ratio) | >106dB (A-weighted, 20Hz-20kHz, 8Ξ© load) |
|---|
| AD500 β Output Voltage | 70Vp / 140Vpp (unloaded) | Bridged 140Vp / 280 Vpp (unloaded) |
|---|
| AD500 β DSP Technology | Ultimate DSP with WI-FI and Ethernet Connection |
|---|
| AD500 β DSP Adjustable Parameters | Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | GPIO Functions | Routing |
|---|
| AD500 β DSP Presets | Allows to Store and Load Individual Presets as well as Preset Libraries |
|---|
| AD500 β Delay Adjustment | 100ms (34.3m) per Output |
|---|
| AD500 β Control Type | Controlled Via Webpage - Compatible with Desktop, Tablet and Mobile Phone (Wireless or Cable 1 x RJ45) |
|---|
| AD500 β Wireless Connection System | Works as a WI-FI Access Point (WAP) or WI-FI Client |
|---|
| AD500 β Audio Signal Inputs | 4 x Analog Unbalanced Inputs | 4 x Analog Balanced Inputs | Stereo S/PDIF |
|---|
| AD500 β Input Connectors | 4 x RCA | 2 x 6-Pole 3.5mm Phoenix Type | 1 x RCA | 8 x GPIO |
|---|
| AD500 β Audio Signal Outputs | Stereo S/PDIF |
|---|
| AD500 β Output Connectors | 1 x RCA | 8 x GPIO |
|---|
| AD500 β Speakers Output Connectors | 2 x 4-Pole 5mm Phoenix Type |
|---|
| AD500 β Protections | Short Circuit, DC, Undervoltage, Temperature and Overload Protection |
|---|
| AD500 β Operating Temperature Range | 0ΒΊC - 40ΒΊC |
|---|
| AD500 β Cooling Type | Speed Controlled Fan |
|---|
| AD500 β Power Supply | UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter |
|---|
| AD500 β Power Input | AC 100V - 240V 50Hz/60Hz |
|---|
| AD500 β Mains Connector | Standard IEC socket |
|---|
| AD500 β Power Consumption | 150W |
|---|
| AD500 β Special Features | GPIO Functions: Standby, Mute, Volume Control, Trigger IN, Trigger OUT |
|---|
| AD500 β Dimensions (WxHxD) | 44 x 220 x 319mm (1.7 x 8.7 x 12.6 in) |
|---|
| AD500 β Fixation | 1U 19" Rack Mount | Wall / Desktop Mount (Necessary Accessories Not Included) |
|---|
| AD500 β Net Weight | 2.8kg (6.2 lbs) |
|---|
| AD500 β Shipping Weight | 3.5kg (7.7 lbs) |
|---|
| AD500 β Accessories | 19" Rack Mount Kit | Wall / Desktop Mount Kit (not included) |
|---|
