NEXT Audiogroup 4Pro15.A504

Original price €0.00 - Original price €0.00
Original price
€0.00
€0.00 - €0.00
Current price €0.00

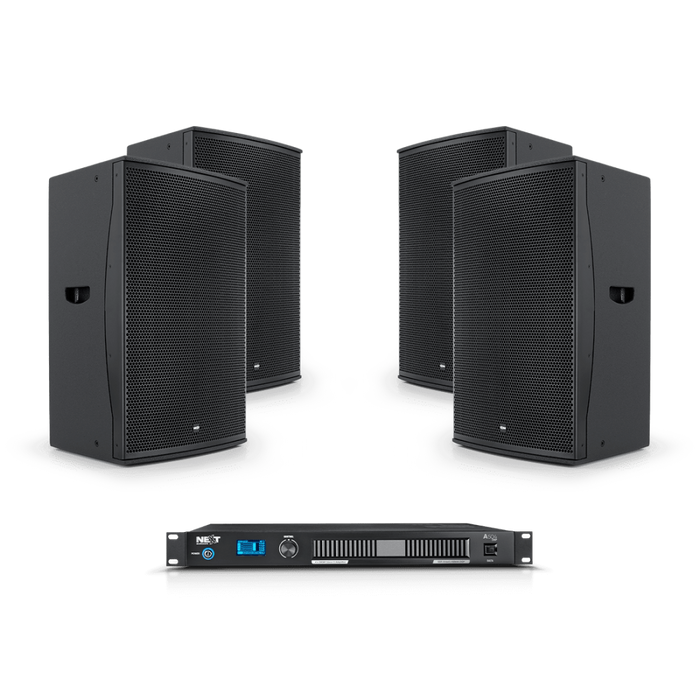

Package contents: 4 Γ— Pro15 (Passive Full-Range Speaker/Monitor) + 1 Γ— A504DSP (Class D Amplifier with DSP).

Main features

  • Package contents: 4 Γ— Pro15 + 1 Γ— A504DSP
  • Pro15 β€” Passive Full-Range Speaker/Monitor
  • Pro15 β€” Frequency Response (-6dB): 48Hz - 20kHz
  • Pro15 β€” Program Power: 700W
  • A504 DSP β€” Class D Amplifier with DSP
  • A504 DSP β€” Frequency Response: 20Hz - 20kHz (+0 / -1dB)
  • A504 DSP β€” Speaker Output: 4Ξ© - 16Ξ© | 100V

Product features

Pro15 β€” Low Impedance Input

Allows 8Ξ© configuration for small to medium installations

Pro15 β€” HF Driver Protection

Gives the high-frequency driver extra protection against sudden audio peaks

Pro15 β€” Easy Install

Installs without advanced technical skills or specialized tools

Pro15 β€” Ver./Hor. Installation

Can be mounted horizontally or vertically depending on the setup

Pro15 β€” Crossover

Internal crossover designed to keep frequency and phase response linear and protect the drivers

Pro15 β€” Hanging Points

Several dedicated points for suspending the speaker in different ways, such as with eye bolts

A504 DSP β€” Ultra-Thin Design

Slim chassis that saves rack space while keeping a sleek look.

A504 DSP β€” Matrix

An input/output matrix for routing each input to any output port.

A504 DSP β€” 4Ξ© Minimum Imp.

Supports loads down to 4Ξ©, allowing more speakers per channel.

A504 DSP β€” DSP

Built-in digital signal processor for equalizing sound to suit a venue or installation.

A504 DSP β€” 100V Line Output

Powers medium to large systems using 100V line speakers.

A504 DSP β€” Dedicated Presets

Stored presets for different applications, selectable as needed.

Detailed specifications

Package Contents4 Γ— Pro15 + 1 Γ— A504DSP
Pro15 β€” Product TypePassive Full-Range Speaker/Monitor
Pro15 β€” Frequency Response (-6dB)48Hz - 20kHz
Pro15 β€” Low Frequency Extension (-10dB)40Hz
Pro15 β€” Nominal Coverage (-6dB)80ΒΊ H x 50ΒΊ V (User Rotatable)
Pro15 β€” Program Power700W
Pro15 β€” Peak Power1400W
Pro15 β€” Nominal Impedance8Ξ©
Pro15 β€” Sensitivity (1W, 1m)98dB (Full-Space)
Pro15 β€” Maximum SPL Pgm/Peak126.5dB / 129.5dB (Full-Space) (calculated)
Pro15 β€” Low Frequency Driver15" Woofer | 3" Voice Coil
Pro15 β€” High Frequency Driver1" Titanium Driver | 1.7" Voice Coil
Pro15 β€” Recommended High-Pass Filter42Hz, 18dB/oct Butterworth
Pro15 β€” Input Connectors2 x NL4 parallel wired
Pro15 β€” Fittings12 x M8 Threaded Inserts | 1 x 35mm Pole Mount Socket
Pro15 β€” HandlesTwo on the sides (one on each side)
Pro15 β€” GrilleBlack Perforated Steel
Pro15 β€” Construction15mm multi-laminate birch ply
Pro15 β€” FinishPoliurea Coating
Pro15 β€” Dimensions (WxHxD)420 x 718 x 410mm (16.5 x 28.3 x 16.1 in)
Pro15 β€” Net Weight26.5kg (58.4lb)
Pro15 β€” Shipping Weight30kg (66.1lb)
Pro15 β€” AccessoriesU-Bracket (not included)
A504 DSP β€” Product TypeClass D Amplifier with DSP
A504 DSP β€” Frequency Response20Hz - 20kHz (+0 / -1dB)
A504 DSP β€” Amplifier TechnologyClass D
A504 DSP β€” Number of Amplifier Channels4 Channels
A504 DSP β€” Amplifier Power - Stereo 8Ξ©4 x 250W
A504 DSP β€” Amplifier Power - Stereo 4Ξ©4 x 500W
A504 DSP β€” Amplifier Power - Bridge 8Ξ©2 x 1000W
A504 DSP β€” Amplifier Power - 100V2 x 1000W
A504 DSP β€” Amplifier Gain34dBΒ±0.5dB
A504 DSP β€” Speaker Output4Ξ© - 16Ξ© | 100V
A504 DSP β€” Damping Factor>180
A504 DSP β€” THD+N<0.15%
A504 DSP β€” SNR (Signal to Noise Ratio)>95dB
A504 DSP β€” Crosstalk>50dB
A504 DSP β€” Input Sensitivity0.9V - 1.1V (0 / Β±1dBV)
A504 DSP β€” Input ImpedanceBalanced: 20kΞ© | Unbalanced: 10kΞ©
A504 DSP β€” DSP Technology4 IN x 4 OUT - 32bit | 192kHz DSP
A504 DSP β€” Latency0.66ms
A504 DSP β€” DSP Adjustable ParametersPEQ, HPF, LPF, HSF, LSF, Compressor, Gate, Level, Delay, Polarity, Mute
A504 DSP β€” Delay Adjustment62.4ms / 21.42m per Channel
A504 DSP β€” Control TypeOn the Amplifier Encoder and LCD | Via USB and Suplied PC Software
A504 DSP β€” Audio Signal InputsAnalog Audio
A504 DSP β€” Input Connectors4 x Neutrik XLR
A504 DSP β€” Speakers Output Connectors4 x Neutrik NL4
A504 DSP β€” ProtectionsFull short-circuit, Open Circuit, Thermal, Ultrasonic, DC and RF protection stable into reactive or mismatched loads, Turn ON/OFF, Muting
A504 DSP β€” Operating Temperature Range0ΒΊC - 40ΒΊC
A504 DSP β€” Cooling TypeSpeed Controlled Fan
A504 DSP β€” Power SupplySwitching Mode Power Supply (SMPS)
A504 DSP β€” Power InputAC 110V - 120V | AC 220V - 240V 50Hz/60Hz Β±10%
A504 DSP β€” Mains ConnectorStandard IEC socket
A504 DSP β€” Power Consumption1100W
A504 DSP β€” Fittings1U 19" Rack
A504 DSP β€” Dimensions (WxHxD)483 x 44 x 290mm (19 x 1.73 x 11.4 in)
A504 DSP β€” Net Weight6kg (13.2lb)
A504 DSP β€” Shipping Weight7.2kg (15.9 lb)
