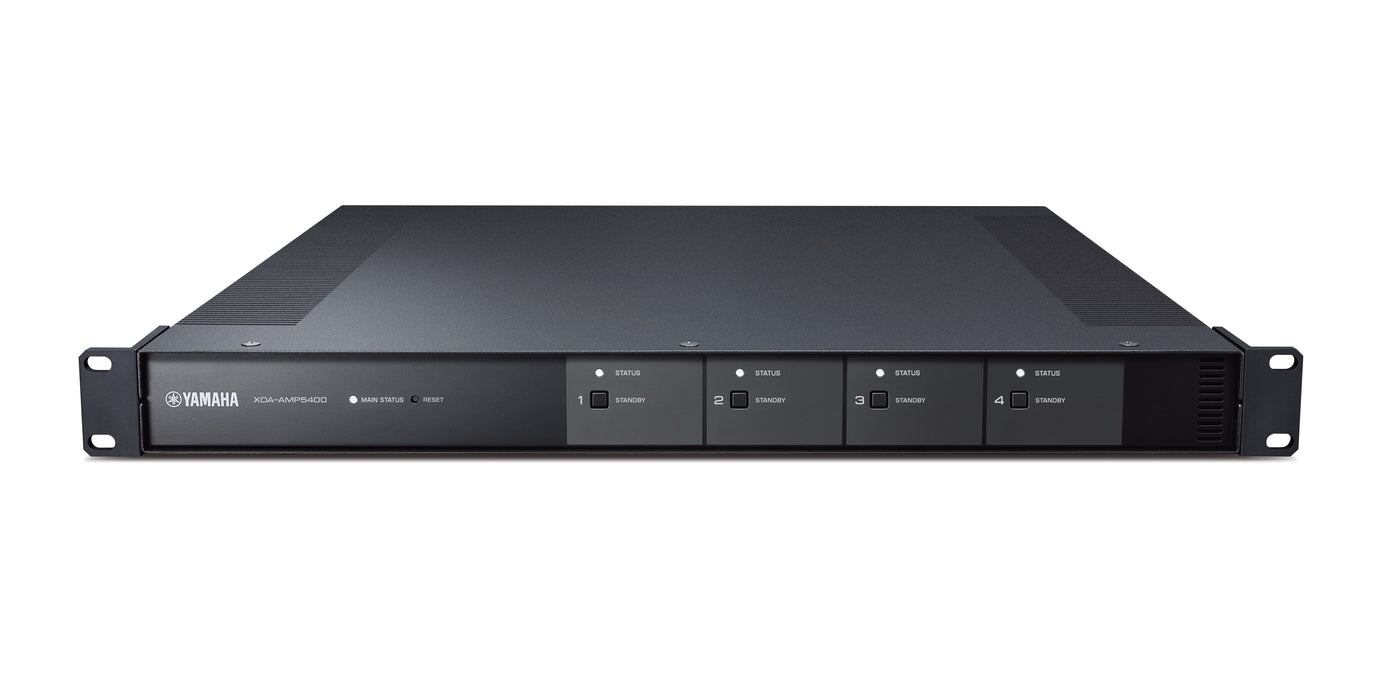

Yamaha XDA-AMP5400RK – Black

by Yamaha
Original price €1,690.00 - Original price €1,690.00
Original price
€1,690.00
€1,690.00 - €1,690.00
Current price €1,690.00

Specially designed for custom integration of whole home audio systems, the “AMP” serves as a companion amplifier for the Yamaha XDA-QS5400RK to expand speaker coverage and/or increase power output. It may also be used to expand secondary zone speaker coverage for Yamaha AV receivers that have Zone pre outs.

Main features

  • Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems
  • Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
  • Four audio buses and included jumpers allow for wide variety of speaker configurations
  • Interlocks power on/off with XDA-QS5400RK via Trigger I/O
  • Integration-friendly features include audio sensing inputs, IR I/O and more
  • 1U high, rack-wide enclosure; removable rack ears and faceplate included

Product features

Control and convenience

Works together with Yamaha XDA-QS5400RK to expand speaker coverage in custom integrated multi-room audio systems.

Sound and performance

Eight channels of audiophile-grade Class D amplification, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design. Four audio buses and included jumpers allow for wide variety of speaker configurations. Interlocks power on/off with XDA-QS5400RK via Trigger I/O.

Connectivity and playback

Integration-friendly features include audio sensing inputs, IR I/O and more.

Design and construction

1U high, rack-wide enclosure; removable rack ears and faceplate included.

Detailed specifications

Audio Specifications

  • Channel: 8 channel (2 channel x 4)
  • Minimum Speaker load Capability: 4 ohm
  • BTL Connection: Yes
  • Speaker Output Terminal: 4 (Euroblock)
  • Audio Input Terminal: RCA: 4
  • Audio Output Terminal: RCA (2-ch through out): 4
  • Trigger In / Out: 4 / 4
  • Remote In / Out: 1 / 1
  • Rated Output Power (1 kHz, 0.9% THD, 2ch driven): Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
  • Rated Output Power (1 kHz, 0.9% THD, 1ch driven): Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
  • Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst): Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
  • Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst): Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
  • Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst): Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
  • Maximum Effective Output Power: [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm):130 / 65 W, Bridge (8 ohm): 260 W
  • Total Harmonic Distortion: [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%
  • Frequency Response: [1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz
  • Signal to Noise Ratio: [SP OUT AUX IN] 108 dB
  • Maximum Input Signal: [PRE OUT L / R, 0.9% THD] 1 V
  • Gain: [SP OUT 1 V Input] 25.8 dB
  • Input Sensitivity: [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V

General

  • Power Consumption: 130 W, [All Zone On] No Signal Condition: 32 W, [All Zone Off] Audio Sense On: 14.8 W
  • Standby Power Consumption: Audio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5W
  • Power Management (Auto Power Standby): Yes (On / Off)
  • Dimension (W × H × D) mm: [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
  • Weight: 6.0 kg; 13.2 lbs.
