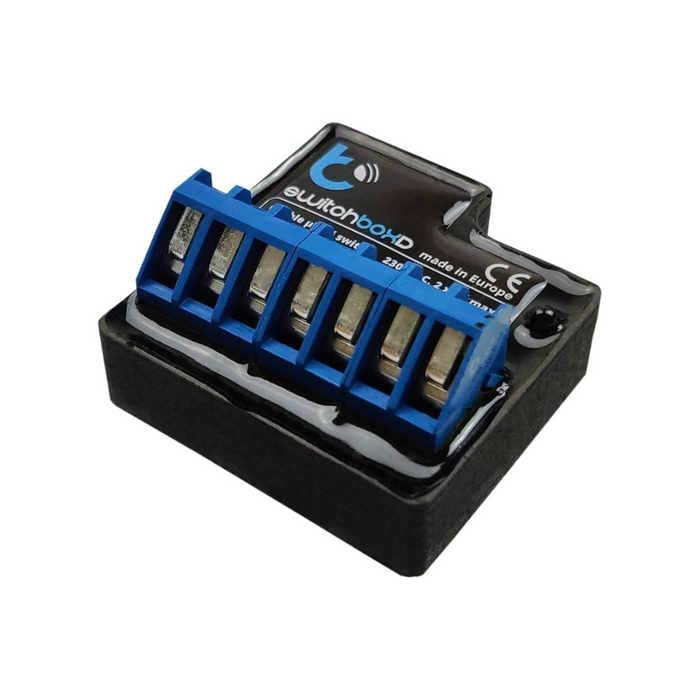

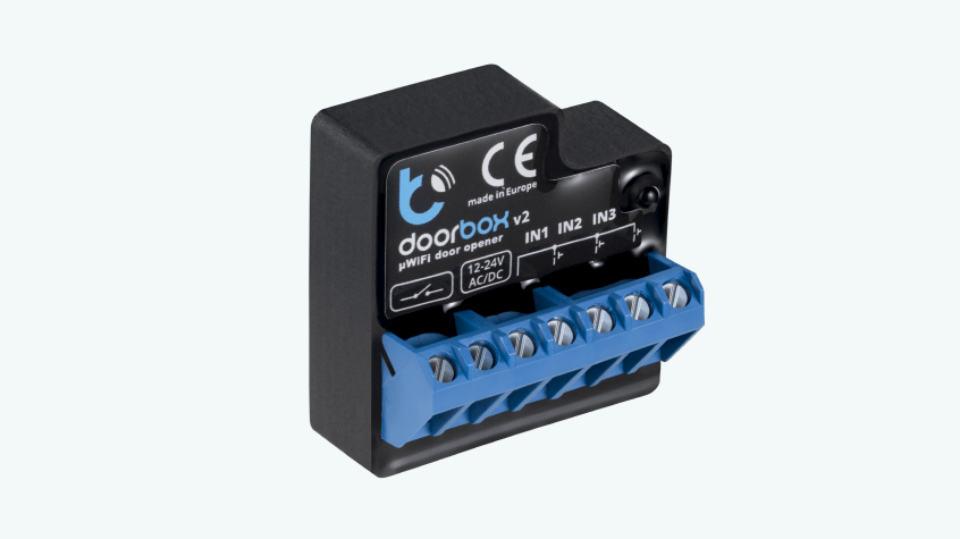

BleBox smart relay module
by Tedee
Sold out
Original price
€0.00
-
Original price
€0.00
Original price
€0.00
€0.00
-
€0.00
Current price
€0.00
Street entrance. Front gate. Garage door. One app.
Replace your remote control, fobs, cards or keys with your mobile phone.
This is a product made by BleBox. After installation, you can integrate and control it with the Tedee app.
Supply voltage: 12-24V AC / DC
Power consumption: less than 1W
Outputs number: 1
Outputs type: relay
Max load: 6A 24V AC 6A 24V DC
Inputs number: 3
Inputs type: logical, closed to COM
Inputs voltage: 12 - 24V AC / DC
Galvanic isolation: Yes, optical
Inputs polarization: detected automatically
Housing: made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C)
Protection Rating: IP20
Mounting: in the flush-mounted box (deepen or double) in the receiver case.
Transmission: bi-directional, encrypted
Transmission frequency: 2.4GHz
Communication standard: μWiFi, compatible with WiFi
Communication mode: Wi-Fi connection via a standard router
Control output type: relay NC/NO
Maximum power: 144VA @ 24V AC 144W @ 24V DC
Measurements: 39 x 39 x 22 mm
